    • The world's fastest 4-bay NAS among all NAS brands with stunning 108MB/s read and 110MB/s write speeds under RAID 5 (Ranked #1 in Total NAS category as of June/2015 by Smallnetbuilder)
    • Windows + Mac + Linux cross-platform file sharing
    • Support for RAID 0, 1, 5, 6, 10 and hard drive hot swapping
    • Local HDMI multimedia output (4K, 1080p and high-definition multi-channel audio)
    • Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications
    • SMB 2/3 support increases Windows networking performance by 30%-50%

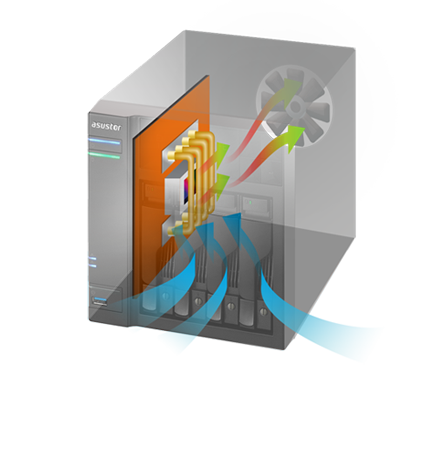

Crafted for ultra-quiet and cool operation

We have meticulously designed a specialized cooling system for this high performance NAS. A single extra-large fan (different from common add-on fans) and dedicated heat pipes work with the ingeniously designed disk tray vents to allow air to flow from the front to the back of the device, effectively cooling the CPU and hard disks. Furthermore, our ADM software comes with an automatic fan control mechanism that effectively controls the fan rotation speed, significantly lowering any noise produced and allowing the NAS to operate at noise levels lower than any library.


Expand your storage space

A professional grade NAS needs to be equipped with a diverse array of expansion functionality. In addition to the 4 drive bays, we have also included 2 USB 2.0 ports, 3 USB 3.0 ports and 2 eSATA ports, allowing you to create a tailored storage space for both your work and entertainment needs.


Extreme Multimedia Playback

No matter if it's 4K or 10bit, XBMC 13 paired with the Intel Core i3 dual-core processor's powerful built-in graphics engine gives you the ability to play any video files with ease. Get ready to enjoy brilliant and flawless images on ultra high resolution monitors.

Additionally, you can also further add a surround sound amplifier to create an unprecedented high definition multi-channel listening experience. Imagine watching your favorite racing movie and being immersed in the roar of the engines. Feel the thrill and the sense of speed as you listen to the sounds of cars whizzing by. Prepare for an unparalleled entertainment experience that will have you on the edge of your seat.

*Currently, 2160p(4k) is only available on the 70 series.
**Currently, XBMC 13 is only available on the 70 series.


Even More Reliable After-Sales Service

ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.


A Surge in Data Transfer Performance

ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%*. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.

* Actual performance may vary due to differences in the installation environment. SMB 2.0 is supported in Windows Vista and later versions of the Microsoft Windows operating system.


Secure Disk Tray Lock Design

In order to help users avoid accidentally pushing disk tray buttons and releasing hard disks during operation, ASUSTOR has added a new lock mechanism to its hard disk trays. The lock's flat-head design ensures that users will not need any special keys or tools to unlock it, only a simple flat-head screw driver. The new disks trays can be used with all ASUSTOR NAS devices, providing an additional layer of security for applications requiring the frequent swapping of hard disks (e.g., MyArchive).


We've got it Ready: 4K Ultra High Definition

ASUSTOR Portal offers complete support for 4K ultra high definition output. With 4K ultra high definition, the desktop background and icons appear clearer and sharper giving you a luxurious and immersive visual experience.

*Currently, 2160p(4k) is only available on the 7 series.


Create a Stable, Reliable and High Quality Surveillance System

The powerful 70 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful 70 Series devices are your optimal choice when creating a comprehensive surveillance system.

*Surveillance Center comes with 4 free IP camera channel licenses, which is higher than the industry standard. Users can also purchase add-on camera licenses to flexibly add new camera channels.
*Two different camera license packages are offered: single channel and 4 channels. Currently, the 70 Series devices can be expanded up to a maximum of 49 channels.
*The maximum number of cameras is based on the test results for each channel using 720P (1280x720), 30 FPS and H.264. Actual performance may vary due to camera settings and NAS load.


High Quality Audio Output with S/PDIF

Turn your NAS into your digital music hub and let ASUSTOR's 70 Series devices take your local audio playback to another level. You can use SoundsGood or iTunes Server to play high quality digital music from your NAS and further combine it with S/PDIF high fidelity optical output for an unmatched listening experience that will truly bring your music to life.


Blazing performance that's ranked No. 1 in the world.

  • The world's fastest 4-bay NAS among all NAS brands with stunning 108MB/s read and 110MB/s write speeds under RAID 5 (AS7004T ranked #1 in Total NAS category as of June/2015 by Smallnetbuilder)
  • The world's fastest 2-bay NAS among all NAS brands with stunning 108MB/s read and 117MB/s write speeds under RAID 1 (AS5102T ranked #1 in Total NAS category as of June/2015 by Smallnetbuilder and

Windows Sequential Read/Write (512KB, 10GbE x 2)

Series Read Write
AS70 1014.25 1171.47


iSCSI Sequential Read/Write (512KB, 10GbE x 2)

Series Read Write
AS70 828.81 1019.36


Windows Sequential Read/Write (512KB, 10GbE x 1)

Series Read Write
AS70 514.46 749.31


iSCSI Sequential Read/Write (512KB, 10GbE x 1))

Series Read Write
AS70 417.13 588.78


Windows Sequential Read/Write (10GB file, 1GbE x 2 Link Aggregation ALB)

Series Read Write
AS70 225.5 224.86
AS62 224.77 220.28
AS61 224.39 188.13
AS51 220.71 218.14
AS50 219.97 187.71


iSCSI Sequential Read/Write (10GB file, 1GbE x 2 Link Aggregation ALB)

Series Read Write
AS70 222.54 225.26
AS62 222.43 221.72
AS61 220.26 192.86
AS51 195.49 190.19
AS50 191.9 184.51


Windows Read/Write (5GB file, 1GbE x 1)

Series Read Write
AS70 115.22 120.26
AS62 112.80 111.95
AS61 112.45 111.64
AS51 112.38 111.73
AS50 112.05 110.20
AS-6 111.18 108.66
AS32 112.35 110.19
AS31 112.41 112.41
AS-3 110.38 81.74
AS-2TE 101.36 70.32
AS-2T 98.68 65.88
AS10 110.66 95.72


iSCSI Read/Write (5GB file, 1GbE x 1)

Series Read Write
AS70 102.4 119.54
AS62 112.04 111.46
AS61 111.60 111.20
AS51 100.16 102.27
AS50 99.66 101.89
AS-6 99.24 97.88
AS32 105.59 106.64
AS31 105.67 103.66
AS-3 86.76 86.52
AS-2TE 83.52 83.61
AS-2T 83.18 79.14
AS10 92.52 88.82


AS70 Test Environment

Client PC 1
CPUIntel Core i7-2600 3.40GHz
OSWindows 7 x64
HDDIntel SSD 530 128GB * 2 [RAID0]
NetworkIntel Gigabit CT Desktop Adapter [MTU 1500]
ASUS PEB-10G / 57840-2S [MTU 9000]
Client PC 2
CPUIntel Core i5-2320 3.00GHz
OSWindows 7 x64
HDDAMD Radeon R7 480GB *2 [Raid0]
NetworkIntel Gigabit CT Desktop Adapter [MTU 1500]
ASUS PEB-10G / 57840-2S [MTU 9000]
OSADM 2.3.0.R955
HDDIntel SSD 530 128GB *10
Network1Gbps Ethernet, MTU 1500

  • Tested models: AS7010T
    Tested RAID level: RAID 5

AS10/31/32 Test Environment.

Client PC
CPUIntel Core i7-2600 3.40GHz
OSWindows 7 x64
HDDIntel SSD 530 128GB * 4 [RAID0]
NetworkIntel Gigabit CT Desktop Adapter [MTU 1500]
SwitchDLink DSG-1210-16
OSADM 2.5.4.RF42
HDDIntel SSD 520 128GB * 4
Network1Gbps Ethernet, MTU 1500
SwitchDLink DSG-1210-16

  • Tested models: AS1004T/AS3104T/AS3202T
    Tested RAID level: RAID 1

AS-2/3/6 Test Environment

Client PC
CPUIntel Core i5-2320 3.00GHz
OSWindows 7 x64, Ubuntu Server 12.10 x64
HDDToshiba MQ01ABD032 *2 [Raid0]
Network1Gbps Ethernet, MTU 1500
SwitchDLink DSG-1210-16
OSADM 2.0.2.R899
Network1Gbps Ethernet, MTU 1500
SwitchDLink DSG-1210-16

  • Tested models: AS-604T/AS-304T/AS-204TE/AS-204T
    Tested RAID level: RAID 5

  • Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.

AS50/51/61/62 Test Environment.

Client PC
CPUIntel Core i7-2600 3.40GHz
OSWindows 7 x64
HDDIntel SSD 530 128GB * 2 [RAID0]
NetworkIntel Gigabit CT Desktop Adapter [MTU 1500]
SwitchDLink DSG-1210-16
HDDIntel SSD 520 128GB *4
Network1Gbps Ethernet, MTU 1500
SwitchDLink DSG-1210-16

  • Tested models: AS5004T/AS5104T/AS6104T/AS6204T/AS6204RS
    Tested RAID level: RAID 5

AS6208T/6210T Test Environment

Client PC 1
CPUIntel Core i5-2320 3.00GHz
OSWindows 7 x64
HDDAMD Radeon R7 480GB *2 [Raid0]
NetworkIntel Gigabit CT Desktop Adapter [MTU 1500]
ASUS PEB-10G / 57840-2S [MTU 9000]
Client PC 2
CPUQuad Core Intel Xeon E3-1245 v3, 3400 MHz (34 x 100)
Memory 4GB
OSWindows 7 x64
HDDSandisk SSD 120GB * 2 [RAID0]
NetworkBroadcom NetLink (TM) Gigabit Ethernet
SwitchD-link DGS-1210-16
Client PC 3
CPUQuad Core Intel Xeon E3-1245 v3, 3400 MHz (34 x 100)
OSWindows 7 x64
HDDSandisk SSD 120GB * 2 [RAID0]
NetworkBroadcom NetLink (TM) Gigabit Ethernet
SwitchD-link DGS-1210-16
OSADM 2.6.0.B3I1
HDDIntel SSD 530 128GB * 10  [RAID5]
Network1Gbps Ethernet, MTU 1500
SwitchD-link DGS-1210-16

  • Tested models: AS6210T
    Tested RAID level: RAID 5

Hardware & Packaging

Hardware Specifications

  • CPU: Intel® Core i3 3.5GHz Dual-Core Processor
  • AES-NI hardware encryption engine integrated
  • Hardware acceleration engine supported format: H.264 (AVC), H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1
  • Memory: 2GB SO-DIMM DDR3 (Expandable. Max 16GB) Installation Guide ,
  • HDD: 2.5" / 3.5" SATA II/ III or SSD x 4¹ Compatibility
  • Maximum Internal Raw Capacity: 40 TB  (10 TB HDD X 4, Capacity may vary by RAID types)
  • Supports Hot Swappable Drives

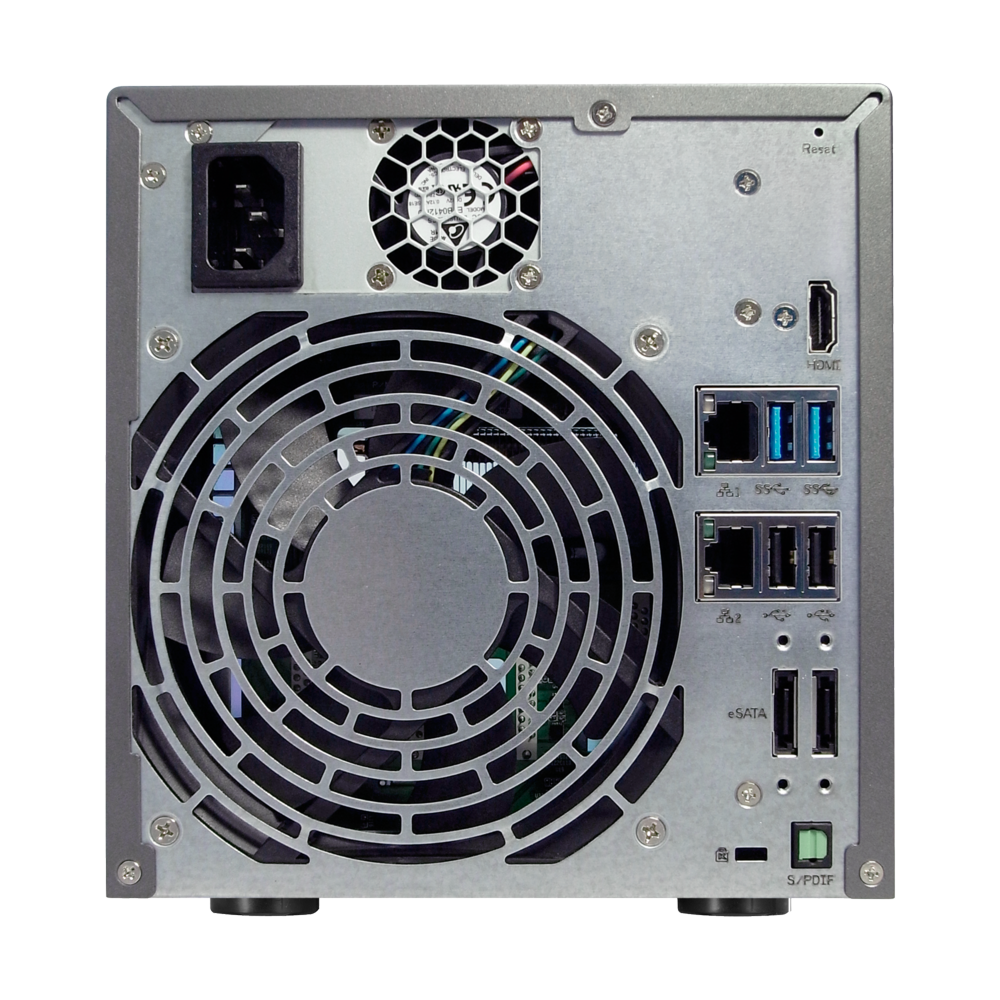

  • Expansion: USB 3.0 x 3, USB2.0 x 2, eSATA x 2
  • Network: Gigabit Ethernet x 2
  • LCD Panel
  • Output: HDMI 1.4a x 1, S/PDIF x1
  • System Fan: 120mm x 1
  • Infrared Receiver
  • Audio Output: S/PDIF
  • Input Power Voltage: 100V to 240V AC
  • Certification: FCC, CE, VCCI, BSMI, C-TICK


  • Power Consumption: 39.1 W (Operation)
    29.4 W (Disk Hibernation)
    1.8 W (Sleep Mode)2 ²
  • Noise Level: 20.7dB (HDD idle)
  • Operation Temperature: 0°C~40°C (32°F~104°F)
  • Humidity: 5% to 95% RH

ASUSTOR Hightlight

  • System Migration
  • Cloud Connect
  • 2-way Backup
  • Task Monitor

Eco-Friendly Design

  • System Automatically Enters Sleep Mode (Schedule S3)
  • Auto-Standby for Both Internal and External Disks
  • Auto Fan Control
  • LED Night Mode
  • Power Schedule: On, Off, Restart, and Sleep..

Size and Weight

Software & Features

Operating System

  • ADM 2.6 Onwards
  • Supports Online Firmware Updates

Supported OS

  • Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
  • Mac OS X 10.6 Onwards
  • UNIX, Linux, and BSD

Supported Languages

  • Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar

Supported Browsers

  • Internet Explore 11 Onwards
  • FireFox
  • Chrome
  • Safari
  • Microsoft Edge


  • VMware ready
  • Citrix ready

Network Protocols

  • CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog

File System

  • Internal Disk: EXT4
  • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+

Storage Management

  • Support Multiple Volumes with Spare Disks
  • Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • Support for Online RAID Level Migration


  • Insert Hard Disk & Immediately Access Files
  • Transfer or Exchange Terabytes of Data via the Internal Hot-Swap SATA Interface
  • Up to 2 Bays Reserved for MyArchive Docking Purposes

iSCSI Read/Write (5GB file, 1GbE x 1)

  • Maximum Targets: 256
  • Maximum LUNs: 512
  • Maximum Snapshot Versions of a Single LUN: 256
  • Target Masking
  • LUN Mapping
  • ISO File Mounting
  • Supports MPIO
  • Persistent (SCSI-3) Reservations

Customized Sign In Page

  • 2 Different Template Choices
  • Customizable Title, Imageand Background
  • Image Import Function

Disk Management

  • Scheduled Bad Block Scans
  • Scheduled S.M.A.R.T Scans

Energy Control

  • Configurable Disk Hibernation and Sleep Mode Wait Time
  • Configurable Time Period for Sleep Mode Activation
  • Automatic Sleep


  • TCP/IP (IPv4 & IPv6)
  • Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
  • Jumbo Frame (MTU)
  • VLAN
  • Cloud Connect
  • Wireless Network³
  • DDNS and EZ-RouterCompatibility
  • Supports Wake-on-LAN (WOL)

Backup Solutions

  • Rsync (Remote Sync) Backup
  • Cloud Backup
  • FTP Backup
  • External Backup
  • Internal Backup Using Internal High Speed SATA’s 6GB Bandwidth to Back up to MyArchive/Volume
  • One Touch Backup

System Administration

  • Log Type: System Log, Connection Log, File Access Log
  • Real-time Online User Monitor
  • Real-time System Monitor
  • User Quota
  • Virtual Drive (ISO Mounting, Maximum 16)
  • UPS SupportCompatibility

Network Recycle Bin

  • Share folder-based
  • Maintains original directory structure and file permission
  • On-click restore
  • Supports scheduled emptying
  • Filtering rules
    1. File size
    2. File extension

Access Control

  • Maximum Number of Users: 16384
  • Maximum Number of Groups: 512
  • Maximum Number of Shared Folders: 512
  • Maximum Number of Concurrent Connections: 2048
  • Supports Windows Active Directory


  • Provides both Windows ACL and Linux ACL permission configuration methods
  • Can enable Windows ACL for specific shared folders
  • Comprehensive support for Windows’ 13 types of advanced permission settings
  • Can view Windows ACL permission settings from within ADM
  • Supports local users and groups
  • Exclusive permission reset function allows users to quickly restore default permissions


  • AES 256-Bit Folder Encryption
  • Firewall: Prevent Unauthorized Access
  • Alert Notifications: E-mail, SMS
  • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  • Built-in Hardware Encryption Engine: AS70/61/62/31/32/10 Series

Network Defender

  • Auto black list
  • Trusted list
  • Black/White list
    • Supports IP/IP range/geolocation

External Devices Compatibility

  • Supports USB/eSATA3 External Storage Devices
  • USB Wi-Fi Dongle Support
  • Bluetooth Dongle/Speaker Support
  • USB Printer Support
  • USB DAC/IR Receiver/Keyboard/Mouse Support
  • CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

Featured Apps


  • Scheduled Scans
  • Automatic Virus Definition Updates
  • Quarantine Infected Files

ASUSTOR Portal(HDMI Local Output)⁶

  • Supports Output for 4 Channels of Megapixel IP Camera Video Feeds
  • Support Chrome / Chromium browsers.
  • Downloads from Chrome/Chromium Automatically Saved to the NAS
  • Power Control Settings: Power on, Sleep, Restart and Wake via Remote
  • Customizable ASUSTOR Portal Desktop Wallpaper
  • Add Shortcuts to Favorite Websites
  • Increased TV Compatibility via Overscan and Resolution Settings
  • Max. Resolution: 1080p(HD)/2160p(4k)
  • ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
  • After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Google+, Hangouts, Pinterest, Twitter, Linkedin, WhatsApp and Instagram.


  • Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, Mac OS X
  • Virtual Machine Import Format: OVF
  • Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
  • Virtual Machine Snapshots
  • Virtual Machine HDMI Audio Output
  • Physical NAS Network Port can be Designated for use by Specific Virtual Machine


  • Kodi 14.2 Onwards
  • Play All Media Content Stored on NAS
  • Video Output via HDMI
  • TV Shows, Movies, Apps and More
  • ASUSTOR Easy Selectable Shared Folder
  • AiRemote Mobile App for iOS & Android
  • Supports SBS 3D Playback (Side By Side)
  • Max resolution: 1080p (HD) / 2160p (4K)

Download Center

  • Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
  • Torrent Search
  • Choose Files Before a BT Task Starts
  • Customizable Download Schedule
  • Bandwidth Control
  • RSS Subscription and Automatic Downloading (Broadcatching)
  • ASUSTOR Download Assistant for Windows & Mac
  • AiDownload for iOS & Android with Push Notification
  • Smart Download Function

DataSync for Microsoft OneDrive

  • Each ADM account is able to individually log into a OneDrive account
  • Supports file filter and bandwidth limitation
  • Supported backup methods:
    • Sync
    • Directly upload files to OneDrive from NAS
    • Directly download files from OneDrive to NAS


  • Each ADM Account is Able to Individually Log in to One Dropbox Account
  • Supported Backup Methods:
    • Sync

File Explorer

  • Web-based File Management
  • ISO File Mounting
  • Share Links
  • Task Monitor
  • Browse Files on Local PC
  • Thumbnail Previews
  • Data Access via External Optical Drive
  • Supports video playback¹⁰

FTP Explorer

  • Directory Structure View with Drag & Drop Transfers
  • Task Monitor
  • Stopping of Transmission Task & Resumption of Connection
  • Encrypted Connections: Explicit over TLS, Implicit over TLS
  • FTP Site Manager
  • Bandwidth Control
  • Maximum Simultaneous Transfer Control

Google Drive

  • Each ADM Account is Able to Individually Log in to One Google Account
  • Supported Backup Methods:
    • Sync
    • Directly Upload Files to Google Drive from NAS
    • Directly Download Files from Google Drive to NAS


  • Each ADM Account is Able to Individually Log in to One HiDrive Account
  • Supported Backup Methods:
    • Directly Upload Files to HiDrive from NAS
    • Directly Download Files from HiDrive to NAS
  • Supported Protocols:
    • Rsync
    • FTP
    • FTPS
    • SFTP
    • Rsync + SSH

LooksGood Transcoding Capabilities

  • Currently only available for Windows Edge / Chrome / Firefox and Mac Safari. Installation of the VLC media player browser plug-in is required.
  • Supports the use of DVB-T/DTMB digital TV dongles to stream and record scheduled digital TV programs.
  • Only certain countries and territories support DVB-T. Please click on the following link to learn more about the regions supporting DVB-T. (Please see thecompatibility list for more information on compatible DVB-T/DTMB digital TV dongles)
  • Supports multiple TV tuners. A single TV tuner can only stream or record from one channel at a time.
  • Playback of High-Definition Video Files
  • Supports External Subtitles and Multiple Audio Channels
  • Supports the Browsing of Photos
  • Recently Added, Recently Watched and Favorite Browsing Categories
  • Supports Browsing of Electronic Program Guides
  • Edit and Manage Recording Tasks
  • Configure Recording Tasks: Time, Length and Recording Frequency
  • No Need for an EPG, Just Select a Channel and Time to Begin Recording
  • Recording Task Log
  • Background conversions (mp4)
  • A variety of conversion resolution options: 240p, 360p, 480p,720p, 1080p⁹
  • Smart Folder automatically adds conversion tasks
  • Supports smart converting
  • Supports scheduled conversion tasks

  • Supported browsers Windows Edge / Chrome / Firefox, Mac Safari
    Supported video formats 3GP, 3G2, ASF, WMV, AVI, FLV, F4V, MKV, WEBM, MOV, MPG, MPEG, M1V, DAT, TS, M2T, M2TS, MTS, MP4, M4V, OGG, OGV, RM, VOB, WMA, MKA, M4A, RA, RAM, RMVB
    Supported video codec H.264 (AVC)、 MPEG-2、VC-1
    Supported external subtitle formats srt, ass, ssa, vtt
    Supported photo formats jpg, jpeg, bmp, png, gif, tif
    Supported TV stick TV standards DVB-T, DTMB
    Series supporting hardware transcoding AS2TE/3/31/32/50/51/61/62/70

iTunes Server

  • For iTunes on Mac & Windows
  • Supports AirPlay
  • Supports iOS Remote Pairing
  • Supported Audio Formats: AIF⁵, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV⁵
  • Supported Video Formats: M4V, MOV, MP4
  • Supported Playlist Formats: M3U, WPL

Mail Server

  • Each ADM Account can Become an Independent Email Account
  • Email Activity Monitor (Over 1 Week, 1/3/6 Months)
  • Provides SMTP, IMAP and POP3 Mail Protocols
  • Supports SMTP Relay and Verification
  • SMTP-SSL Secure Connections
  • Spam Filter and Black List Settings
  • Antivirus Scanning for Emails
  • Email Alias Creation and Mapping
  • Monitoring of Mail Queue
  • Mail Service Activity Log
  • Exclusive Email Backup Mechanism
  • Auto-Forwarding and Auto-Response Protocols

Photo Gallery

  • “Album” and “Browse” Viewing Modes
  • Manage Photo Album Access Rights: Public Access, Restricted to Certain Accounts, Album Password
  • Multi-level Folder Structure Support
  • Supports Tagging of Photos
  • Intuitive Sorting and Comprehensive Search Function
  • Adjustable Photo Wall Browsing Scales
  • Automatic Image Rotation
  • One-click Sharing to Social Media (Facebook, Google+, Twitter, Plurk, email)
  • Intuitive Drag and Drop Management
  • Slideshow Viewing Mode
  • Provides Comment Function for Users to Interact with Each Other.
  • Supports a Wide Range of Image Formats: JPG/JPEG, GIF, PNG, BMP, TIFF, RAW
  • Supports Video Playback

Surveillance Center Compatibility

  • Up to 24channels in 720p on single live view display(4 Free Channels)
  • On-screen camera controls including camera PTZ, manual recordings, take snapshots,configure camera settings and open Maps
  • Up to 4 channels of synchronous and non-synchronous playback with audio
  • Intelligent video analytics including motion detection and foreign object detection
  • Supported Browsers: Windows Internet Explorer, Firefox, Mac Safari, Mac Firefox
  • Event notification supports SMS, E-mail, and mobile push notification
  • Automated event action rules
  • Role-based access control
  • RTSP streaming server (video and audio)
  • AiSecure mobile app for iOS and Android with Push notification
  • ONVIF™ 2.4, Profile S certified
  • Two different camera license packages are offered: single channel and 4 channels.
  • Maximum IP Cam (4 Free Licenses; Additional Licenses to be Purchased)
  • Minimum PC Client Requirements
    • CPU: i5/i7 or above
    • RAM: DDR3 4G or above
    • Operating system Windows 7 and onward, Mac OS X
    • Windows browsers: Firefox 32-bit, IE11 32-bit onwards (excluding Microsoft Edge)
    • Mac browsers: Safari 7.0, Firefox
    • Display resolution: 1280x800 pixels or higher for best user experience
    • Network interface: Gigabit x1
    • Independent graphics card is highly recommend


  • Import Personal/Public Music Collection
  • Personal/Public Music Collection Permission Control
  • Playlist Editor
  • ID3 Tag Editor
  • Local Speaker Support: HDMI, USB, Audio Jack
  • Supported Audio Formats for Browser: MP3, WAV, Ogg
  • Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
  • Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
  • ASUS DAC Support


  • Download from YouTube, Vimeo, YouKu, Tudou and More
  • Selectable the Video Type and Quality
  • Automatic Downloads with YouTube Subscriptions
  • Preview Downloads in Progress
  • Online Playback

UPnP Media Server

  • Supports PS3 and other Digital Media Player Capable Devices
  • Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
  • Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
  • Supported Audio Formats: 3GP, AAC, AC3, AIFC, AIFF, AMR, APE, AU, AWB, FLAC1, M4A, M4R, MP2, MP3, OGG Vorbis1, PCM, WAV, WMA
  • Supported Video Formats: 3GP, 3G2, ASF, AVI, DAT, FLV, ISO, M2T, M2V, M2TS, M4V, MKV, MPv4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, RMVB, VDR, MPE

VPN Client

  • Supported VPN Protocols: PPTP, OpenVPN
  • Transmission Package Monitor
  • PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
  • PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
  • OpenVPN Port Control
  • OpenVPN Link Compression

VPN Server

  • Supports PPTP and OpenVPN Protocols
  • View Current Connections & Ability to Disconnect Suspicious Connections
  • Comprehensive Connection Log

SNMP Server

  • Supports SNMP v1, v2c, v3 and trap
  • ASUSTOR NAS MIB provided

Syslog server

  • Supports standard syslog protocol
  • Graphical log monitoring by time and device
  • Supports TCP and UDP
  • Auto log archiving
  • User-defined email notification
¹ Hard disks not included.
² Test HDD: WD Red 3 TB HDD
³ USB Wi-Fi dongle not included.
⁴ You must first enable real time transcoding for these files in order to play them.
⁵ Metadata (e.g. title) may not be able to displayed in iTunes.
⁸ Files will be converted to mp4 format; Conversion to 1080p requires at least 1.5GB of RAM to be installed on the NAS ⁶ ASUSTOR recommends that ASUSTOR Portal be used with a TV with a resolution of 720p or higher or a monitor supporting audio output.
⁷ Currently, 2160p(4k) is only available on the 31/32/61/62/7 series.
⁸ Files will be converted to mp4 format; Conversion to 1080p requires at least 1.5GB of RAM to be installed on the NAS ¹⁰ Video playback is not supported in Chrome.

Package Contents

  • Package Weight: 4.9kg
  • Package Size: 324(H) x300(W) x240(D) mm

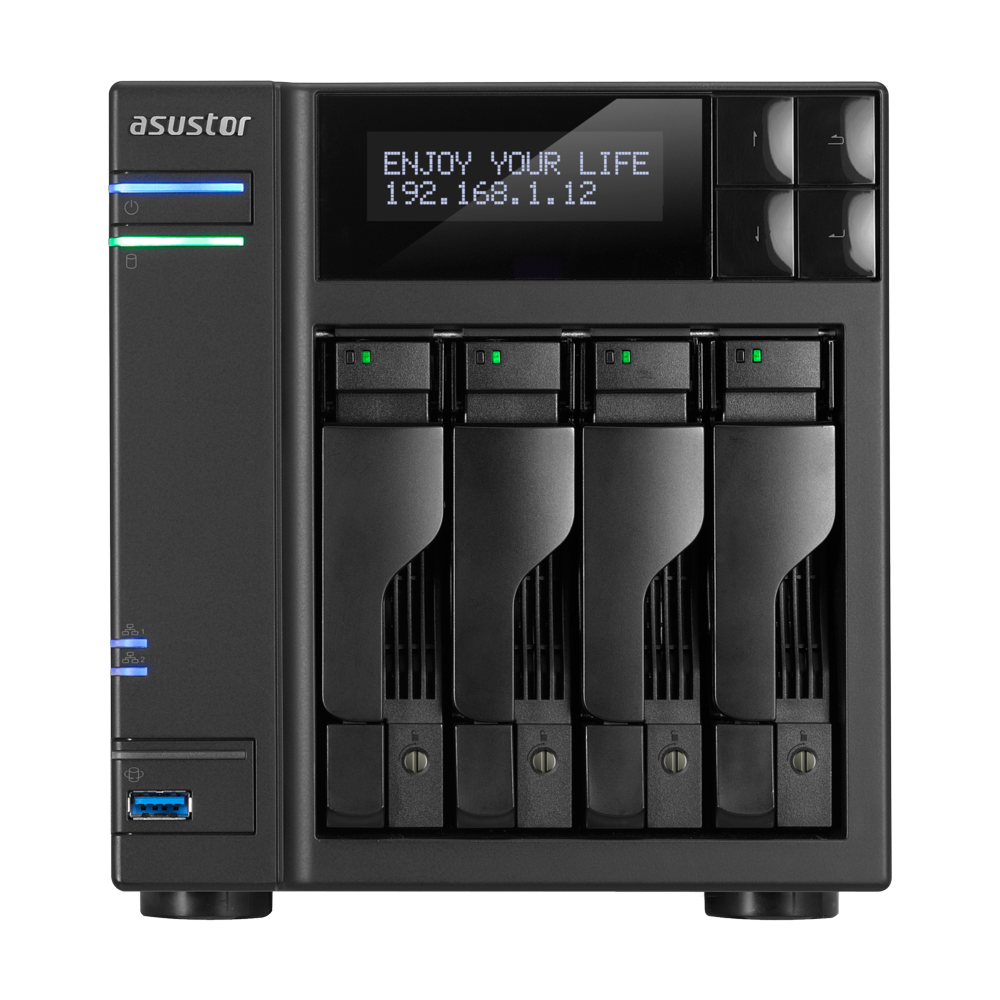

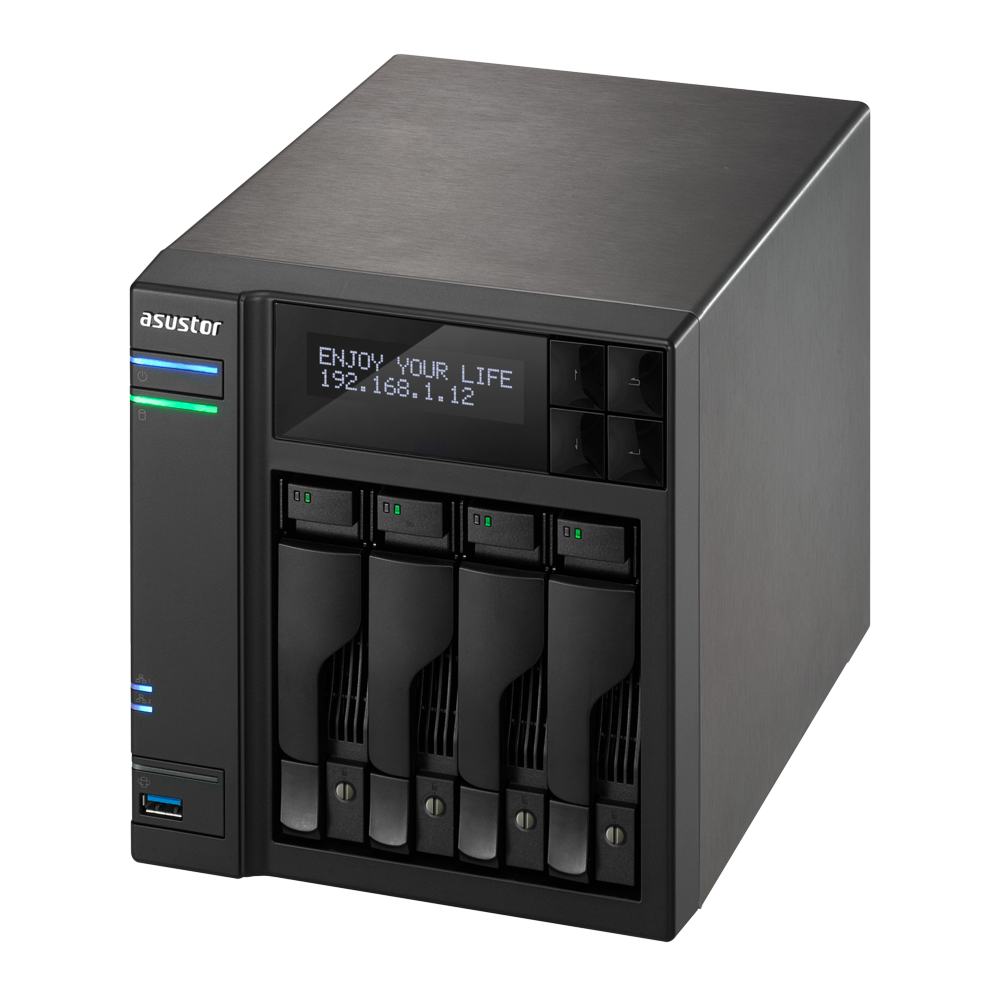

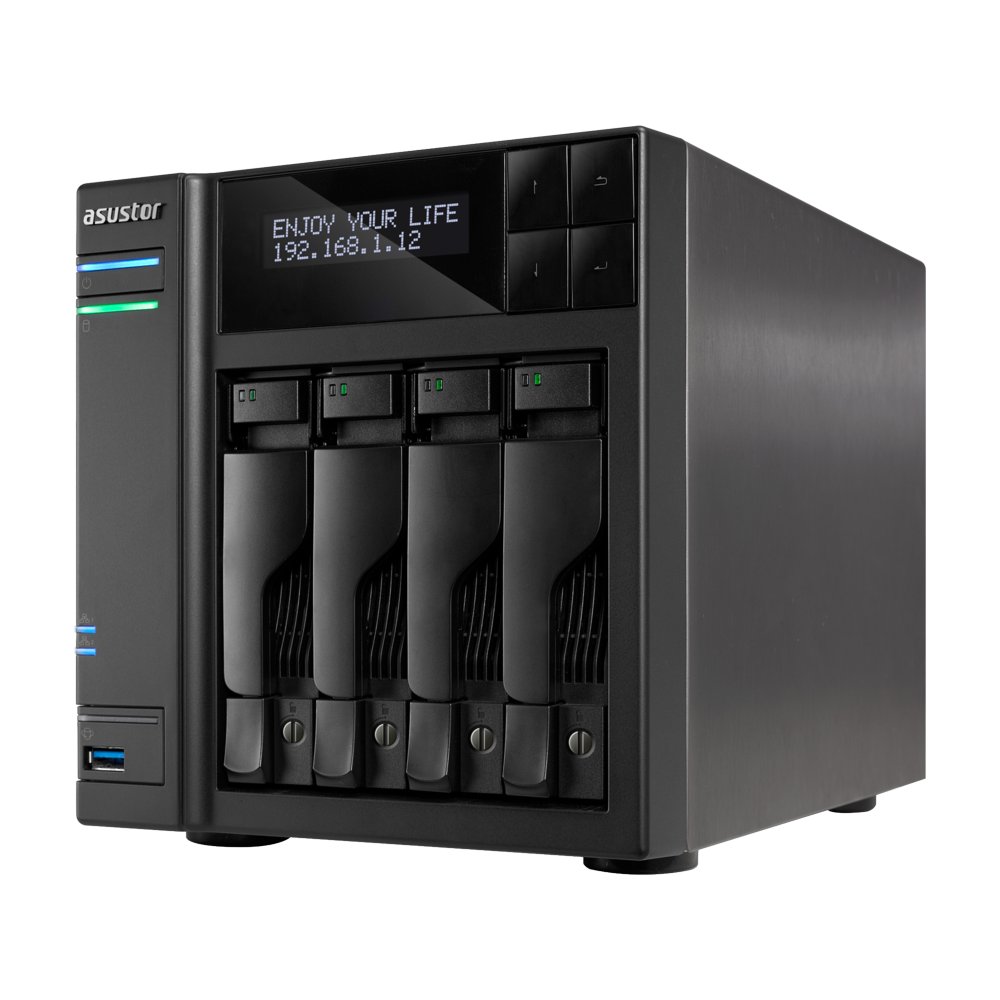

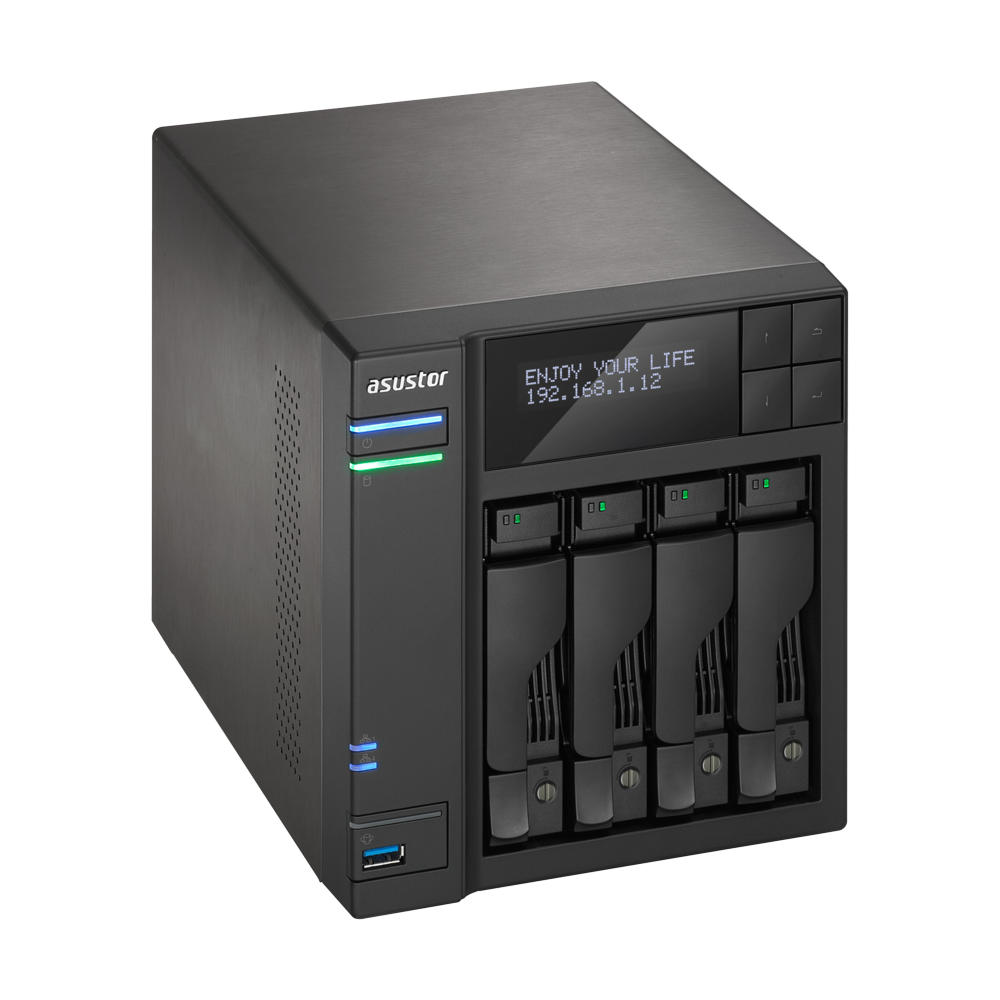

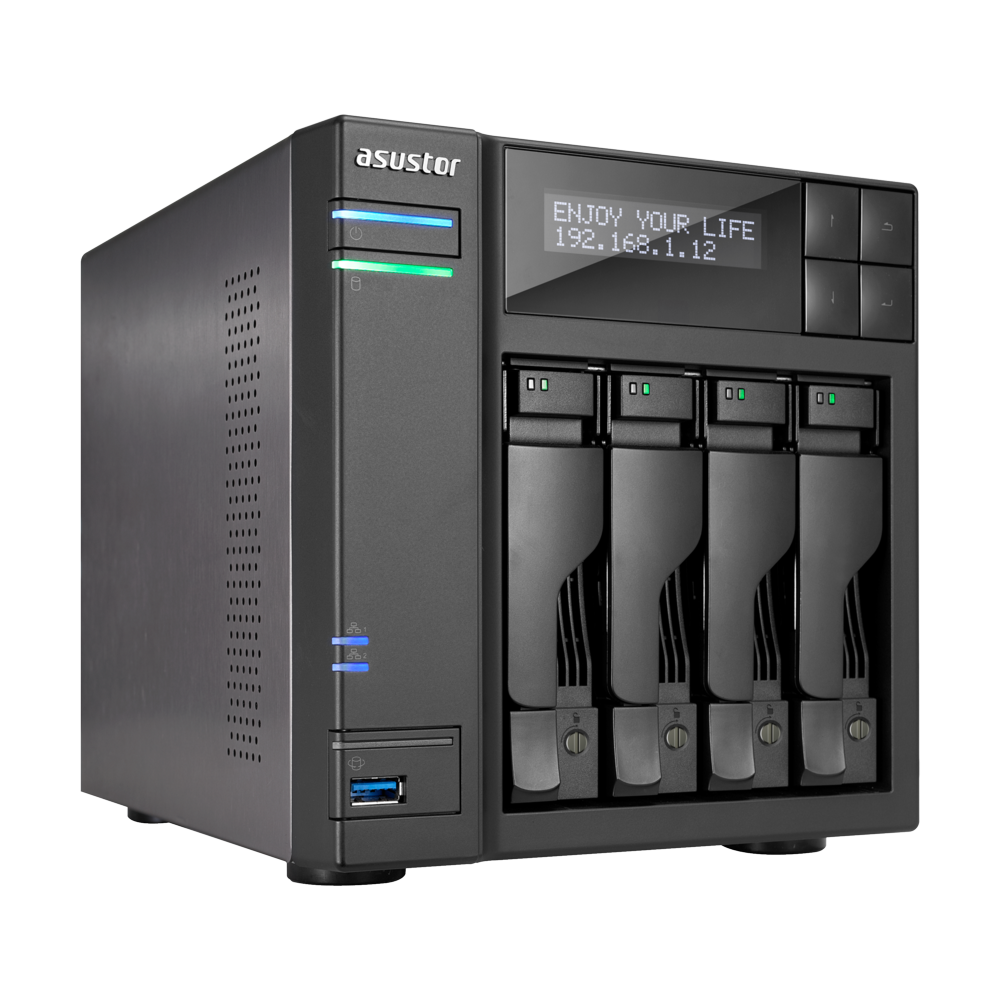

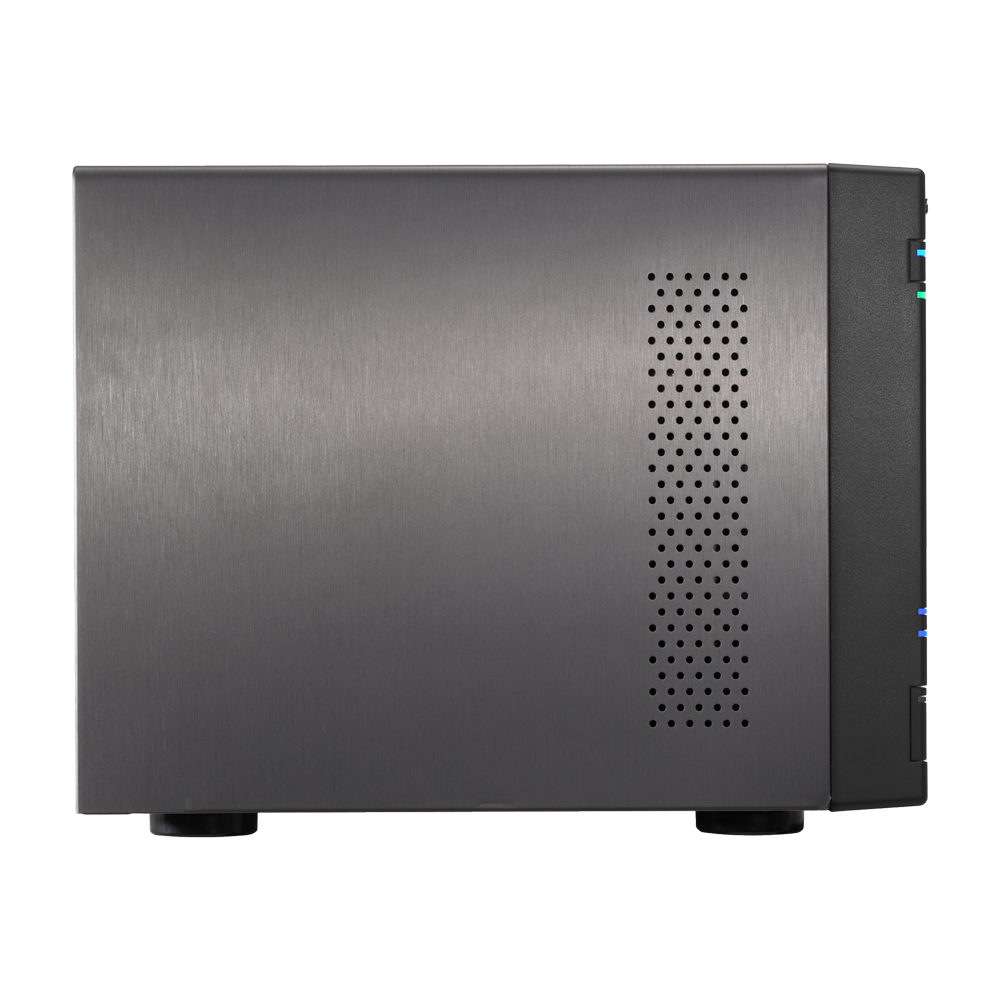

AS7004T Unit x1

Installation CD x1

AC Power Cord x1

RJ-45 LAN Cable(Cat 5e) x2

Flat Head Screw (for 3.5" HDD) x16

Flat Head Screw (for 2.5" HDD) x16
