NAS 271

ASUSTOR NAS MIB Guide

Introduces the basics of ASUSTOR NAS MIB files

2017-11-22

COURSE OBJECTIVE
Upon completion of this course you should be able to:
1. Know the basics of ASUSTOR NAS MIB files
2. Use PRTG to monitor ASUSTOR NAS status

PREREQUISITES
Course Prerequisites:
None
Students are expected to have a working knowledge of:
SNMP, NMS

OUTLINE
1. Introduction
2. Requirements
3. Supported MIB files
4. ASUSTOR MIB files
4.1. ASUSTOR SYSTEM MIB
4.2. ASUSTOR DISK MIB
4.3. ASUSTOR UPS MIB
5. Monitor specific OIDs
5.1. Import MIB file
5.2. Setup the NMS



1. Introduction
ASUSTOR Data Master (ADM) supports SNMP (Simple Network Management Protocol) since 2.4.0. Network administrators can use any SNMP-based NMS (Network Management System) to monitor the status of ASUSTOR NAS. With SNMP trap capability provided, ASUSTOR NAS can send notification to NMS actively when the pre-defined levels of events occur.

A SNMP MIB (Management Information Base) is a hierarchy of information used to define managed objects in a network device. This document introduces the supported MIB files on ASUSTOR ADM, while also describing how OIDs (Object Identifiers) in ASUSTOR MIBs are used. Users are encouraged to have experience and knowledge of NMS and SNMP prior to consulting this document.

2. Requirements
  • ASUSTOR NAS with ADM 2.4.0 or later
  • A SNMP-based NMS

3.Supported MIB files
There are two types of MIB files supported on ASUSTOR ADM: standard and ASUSTOR-specific. The table below shows all the MIBs supported by ASUSTOR ADM.

Standard MIB

Explanation

DISMAN-EVENT-MIB

For defining event triggers and actions for network management purposes

DISMAN-SCHEDULE-MIB

For scheduling SNMP set operations periodically or at specific points in time

HOST-RESOURCES-MIB

For use in managing host systems

IF-MIB

For describing network interface sub-layers

IP-FORWARD-MIB

For the management of CIDR multipath IP Routes

IP-MIB

For IP and ICMP management objects

IPV6-ICMP-MIB

For entities implementing the ICMPv6

IPV6-MIB

For entities implementing the IPv6 protocol

IPV6-TCP-MIB

For entities implementing TCP over IPv6

IPV6-UDP-MIB

For entities implementing UDP over IPv6

NET-SNMP-AGENT-MIB

For monitoring structures for the Net-SNMP agent

NET-SNMP-EXTEND-MIB

For scripted extensions for the Net-SNMP agent

NET-SNMP-VACM-MIB

Defines Net-SNMP extensions to the standard VACM view table

NOTIFICATION-LOG-MIB

For logging SNMP Notifications

SNMP-COMMUNITY-MIB

To help support coexistence between SNMPv1, SNMPv2c, and SNMPv3

SNMP-FRAMEWORK-MIB

The SNMP Management Architecture MIB

SNMP-MPD-MIB

For Message Processing and Dispatching

SNMP-USER-BASED-SM-MIB

For the SNMP User-based Security Model

SNMP-VIEW-BASED-ACM-MIB

For the View-based Access Control Model for SNMP

SNMPv2-MIB

For SNMP entities

TCP-MIB

For managing TCP implementations

UCD-DISKIO-MIB

For disk IO statistics

UCD-DLMOD-MIB

For dynamic loadable MIB modules

UCD-SNMP-MIB

For private UCD SNMP MIB extensions

UDP-MIB

For managing UDP implementations

ASUSTOR-specific MIB

Explanation

ASUSTOR-SYSTEM-MIB

For ASUSTOR system information

ASUSTOR-DISK-MIB

For ASUSTOR disk information

ASUSTOR-UPS-MIB

For ASUSTOR UPS information


Depending on the vendor, many standard MIBs are delivered with the NMS software. You can also download the standard MIBs from the IETF website, www.ietf.org, and compile them into your NMS, if necessary. The OIDs of standard SNMP MIB files will not be explained in this document.

4. ASUSTOR MIB files

ASUSTOR MIB files can provide specific data about a ASUSTOR NAS’s system, disks, and connected UPS. To obtain the ASUSTOR MIB files, please go to ADM > Services > SNMP and click on the hyperlink to download.



ADM provides 3 ASUSTOR MIB files. Please check table below for details:

OID

Group

File Name

.1.3.6.1.4.1.44738.1

asustor system

ASUSTOR-SYSTEM-MIB

.1.3.6.1.4.1.44738.2

asustor hardware

.1.3.6.1.4.1.44738.3

net

.1.3.6.1.4.1.44738.4

disk

ASUSTOR-DISK-MIB

.1.3.6.1.4.1.44738.5

volume

.1.3.6.1.4.1.44738.6

asustor ups

ASUSTOR-UPS-MIB


These MIB files are the child-nodes of OID 1.3.6.1.4.44738. Please note that the MIB files are mutually dependent. You have to import all of them together to your NMS first, and then you can monitor any of the items on NMS.

4.1 ASUSTOR SYSTEM MIB
The ASUSTOR System MIB displays all system statuses, including CPU, fan, and network status. Users can monitor this MIB for system operation. The tables below show information provided in the System MIB.

The child-nodes of asustor system group (.1.3.6.1.4.1.44738.1)

OID

Name

Type

Status Type

Explanation

.1.0

sysSerialNumber

String

-

The serial number of this NAS

.2.0

sysADMVersion

String

-

The ADM version of this NAS

.3.0

sysBiosVersion

String

-

The BIOS version of this NAS

.4.0

sysUptime

String

-

The uptime of this NAS

.5.0

sysTime

String

-

The current time of this NAS

.6.0

sysTimeZone

String

-

The time zone of this NAS

.7.0

sysAsustorID

String

Available

Unavailable

Checks whether there is a newer ADM for upgrade


The child-nodes of asustor hardware group (.1.3.6.1.4.1.44738.2)

OID

Name

Type

Status Type

Explanation

.1.0

hwModelName

String

-

The model name of this NAS

.2.0

hwSysTemperature

Integer

-

The system temperature in Celsius degree

.3.0

hwCPUTemperature

Integer

-

The CPU temperature in Celsius degree

.4.0

hwTotalMem

Integer

-

The system total memory capacity in megabyte(MB)

.5.0

hwFreeMem

Integer

-

The system free memory capacity in megabyte(MB)

.6.0

hwProcessor

String

-

The model name of the CPU

.7.1.1.1

cpuIndex

Integer

-

Used internally for SNMP table and non-accessible

.7.1.1.2

cpuUsage

Integer

-

The percentage of CPU usage

.8.1.1.1

fanIndex

Integer

-

Used internally for SNMP table and non-accessible

.8.1.1.2

fanSpeed

Integer

-

The fan speed in RPM


The child-nodes of net group (.1.3.6.1.4.1.44738.3)

OID

Name

Type

Status Type

Explanation

.1.1.1

netIndex

Integer

-

Used internally for SNMP table and non-accessible

.1.1.2

netInterface

Integer

-

The network interface

.1.1.3

netMacAddress

String

-

The MAC address of the network interface

.1.1.4

netIPv4Address

String

-

The IPv4 address of the network interface

.1.1.5

netIPv6Address

String

-

The IPv6 address of the network interface

.1.1.6

netPacketSent

Integer

-

The outgoing packets in kilobyte(KB)

.1.1.7

netPacketReceived

Integer

-

The incoming packets in kilobyte(KB)


4.2 ASUSTOR DISK MIB
The ASUSTOR Disk MIB contains two tables for disk and volume respectively. As such, the tables can increase or decrease in size when disks or volumes are added or removed. For example, if a disk is inserted, an additional row containing relevant information will emerge. The OIDs DiskIndex and VolumeIndex are reserved for indexes of table rows and cannot be accessed. The tables below describe information provided in the Disk MIB.

The child-nodes of disk group (.1.3.6.1.4.1.44738.4)

OID

Name

Type

Status Type

Explanation

.1.1.1

diskIndex

Integer

-

Used internally for SNMP table and non-accessible

.1.1.2

diskID

String

-

The ID of the disk bay

.1.1.3

diskModel

String

-

The disk model name

1.1.4

diskType

String

SATA

SSD

The disk type

1.1.5

diskStatus

String

Healthy

Normal

Risky

Dangerous

Bad

The S.M.A.R.T status of the disk

1.1.6

diskTemperature

Integer

-

The disk temperature in Celsius degree

1.1.7

diskSize

Integer

-

The disk size in gigabyte (GB)

1.1.8

diskSmartInfo

String

-

The S.M.A.R.T info of the disk


The child-nodes of volume group (.1.3.6.1.4.1.44738.5)

OID

Name

Type

Status Type

Explanation

.1.1.1

volumeIndex

Integer

-

Used internally for SNMP table and non-accessible

.1.1.2

volumeName

String

-

The volume name

.1.1.3

volumeLevel

String

Single

JBOD

Raid0

Raid1

Raid10

Raid5

Raid6

The volume level

.1.1.4

volumeStatus

String

Healthy

Clean

Active

Resyncing

Recovering

Reshaping

Appending

Migrating

fsExpanding fsIniting Degraded

Failed

Inactive

The volume status

.1.1.5

volumeFileSystem

String

-

The volume file system type

.1.1.6

volumeTotalSize

Integer

-

The volume total size in gigabyte (GB)

.1.1.7

volumeFreeSize

Integer

-

The volume free size in gigabyte (GB)


4.3 ASUSTOR UPS MIB
ASUSTOR UPS MIB provides the ability to monitor the status of a UPS device connected to the ASUSTOR NAS. Please note that available OIDs of the UPS MIB depend on what information is provided by the UPS device. If a UPS device does not provide data for a certain OID, that OID will not appear in the NMS software. The table below describes partial information provided in the UPS MIB. If you are interested in all OIDs, please refer to the MIB file ASUSTOR-UPS-MIB.txt.

The partial child-nodes of asustor ups group (.1.3.6.1.4.1.44738.6)

OID

Name

Type

Status Type

Explanation

.1.0

upsManufacturer

String

-

The UPS manufacturer

.2.0

upsModel

String

-

The UPS model name

.4.0

upsVendorID

String

-

The UPS vendor ID

.6.0

upsStatus

String

OL: On line

OB: On battery

LB: Low battery

The UPS status

.7.0

upsBatteryChargePercentage

Integer

-

The battery charged percentage

.8.0

upsBatteryChargeLowPercentage

Integer

-

Remaining battery level in percentage when UPS switches to LB

.13.0

upsInputSensitivity

String

-

The UPS input power sensitivity

16.0

upsInputVoltage

Integer

-

The UPS input voltage


5. Monitor specific OIDs
In any NMS, particular MIB files are needed in order to capture data through SNMP. Users need to import all MIB files to ensure that the NMS can resolve specific OIDs. Once imported, data can be captured by setting up the NMS. Although means of operating different kinds of NMS vary, the process of OID monitoring is similar. The overall procedure is as follows.

1. Import MIB file into NMS.
2. Setup the NMS to monitor specific OIDs.

The following guide demonstrates the use of PRTG (a type of NMS) including how to import MIB files and setup monitoring for the OIDs provided. For further help regarding PRTG, please consult PRTG documentation, as the following is only intended to be a brief description of OID monitoring.

5.1 Import MIB file
As PRTG cannot import MIB files directly, Paessler MIB Importer is required to convert MIB files into the PRTG format:

1. Download and Install Paessler MIB Importer. Download from http://www.paessler.com/tools/mibimporter, and install on your computer.

2. Go to File > Import MIB File




3. Choose all the ASUSTOR MIB file together and click Open File

The three MIB files: ASUSTOR-SYSTEM-MIB.txt, ASUSTOR-DISK-MIB.txt and ASUSTOR-UPS-MIB.txt, must be import together as they are mutually dependent and Paessler MIB Importer cannot load them individually. If the import is successful, a window should appear as shown below.




Detailed information is shown as below.




4. Go to File > Save Complete OIDLib as… to export the MIB files to the PRTG supported format




A PRTG-supported library containing the MIB information will then be generated.

5.2 Setup the NMS
When PRTG is installed, it will create a folder “PRTG Network Monitor” for storing all the required files. The PRTG-supported library containing the MIB files in question should be placed into the subfolder “snmplibs” in folder “PRTG Network Monitor”. Once this has been done, specific OIDs can be set up for monitoring in PRTG. This guide assumes that ASUSTOR NAS have already been added to the devices list and focuses only on how to add OIDs for monitoring.

1. Open the PRTG Network Monitor

2. Go to Sensors > Add Sensor




3. Click Add sensor to an existing device, choose an ASUSTOR NAS from the list, click Continue

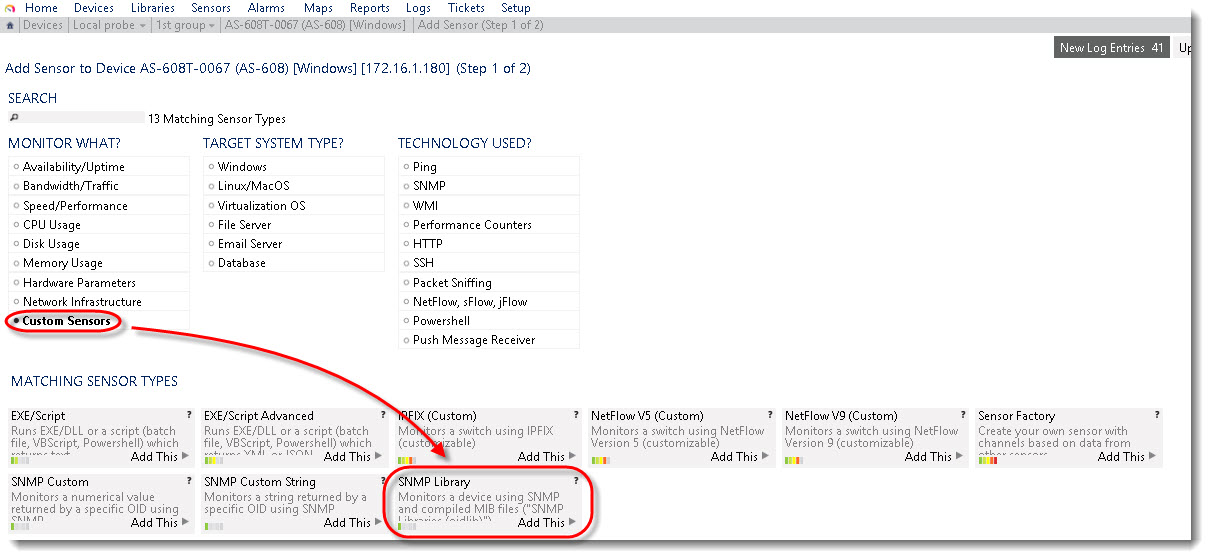

4. Select Custom Sensors > SNMP Library




5. Select the previously exported ASUSTOR library file and click OK




6. Choose items for monitoring

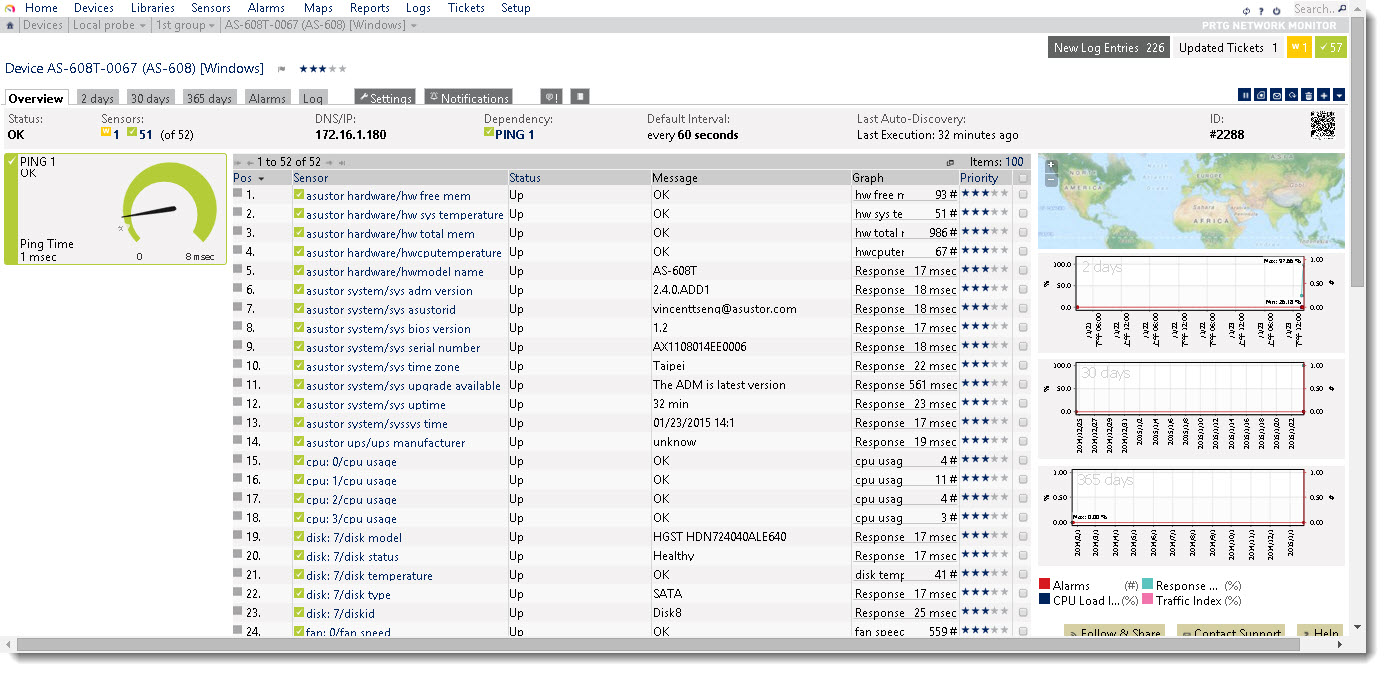

7. You can start monitoring the ASUSTOR NAS status on NMS now!
