AS6302T

  • Enhanced CPU and GPU provides comprehensive performance upgrades
  • 2 GB of expandable dual-channel memory
  • Utilizes the latest HDMI 2.0 and USB 3.0 Type-C specifications
  • Unique WOW (Wake-on-WAN) function provides flexible power control and access

Apollo Lake Processor
Maximized Computing Power

The all new AS6302T is equipped with the Intel Celeron (Apollo Lake) sixth generation 14nm process built dual-core processor. It features overclocking to 2.5GHz and overall performance that is enhanced by 30% when compared with previous generations, satisfying the needs for 24/7 access in small business environments.

Apollo Lake Processor<br/>Maximized Computing Power

Enhanced GPU
Increased Multimedia Processing Power

The AS6302T features a built-in Intel HD graphics engine, supporting HEVC and VP9 hardware transcoding that significantly enhances multimedia and image processing performance by 30%.  This provides an unparalleled fluid usage experience for professionals and prosumers alike.

Enhanced GPU
<br/> Increased Multimedia Processing Power

USB Type-C Ports Allow you to Connect to a New Generation of Devices

In addition to the existing USB 3.0 Type-A ports, the AS63/64 series devices have added two-way Type-C ports that allow your NAS to easily connect to a new generation of devices, quickly completing transfers of large multimedia files.

USB Type-C Ports Allow you to Connect to a New Generation of Devices

HDMI 2.0 Combined with 4K/UHD Output Provides Crystal Clear Quality Displayed Perfectly

The AS63/64 series supports next generation HDMI 2.0 specifications, featuring up to 60/50P 4K resolution video which provides twice the fluidity of 4K 30P. Combined with built-in 2GB/8GB dual channel memory, this allows for the playback of 4K/UHD with unparalleled smoothness. No matter if it’s your treasured collection of Blu-ray quality movies or videos that you have recorded with professional quality cameras, ASUSTOR NAS can perfectly display all of it in crystal clear quality.

*Please note that in order to play 4K/UHD 60P videos, you will need to use a HDMI 2.0 cable

HDMI 2.0 Combined with 4K/UHD Output Provides Crystal Clear Quality Displayed Perfectly

WOW (Wake on WAN)
Always on Standby

Want to access the data on your NAS at any time, but worried that leaving it powered on for a long period of time will result in costly power bills, wear and tear on your hard disks and NAS or that you will become the target of hackers? ASUSTOR has provided the AS63/64 series devices with two types of unique network wake (WOL/WOW) functions easing all of the doubts mentioned above! WOL (Wake on LAN) allows you to wake the NAS from sleep mode or when its powered off as long as you are in the same network. WOW (Wake on WAN) allows you to enable all NAS services via the Internet, providing added flexibility for powering on/off the NAS and data access. These two types of network wake functions allow you to save power, extend the life of your NAS and hard disks, and lower your chances of being randomly hacked, ensuring data security.

WOW (Wake on WAN)
<br/>Always on Standby

Seamless Compatibility with Various Platforms

The AS6302T comes with the ADM operating system which is compatible with a large variety of network protocols*. No matter if you are using Windows, Mac OS X or Unix-like operating systems you will be still be able to easily access and share data on the NAS. No matter if you are using a PC, notebook, tablet or smartphone your data is always within reach.

Seamless Compatibility with Various Platforms

Simplified Management

Fast! 3-Step Seamless System Migration

ASUSTOR NAS’s dedicated ADM operating system provides a simple operation interface and a variety of management tools for enterprise MIS staff. These tools include online hard disk capacity expansion, 3-step seamless system migration, event notifications, and comprehensive support for all 13 Windows ACL file permissions, allowing for close integration with AD domains and providing simplified IT management and increased productivity.

Fast!
3-Step Seamless System Migration

PC-less Software Installation

Mobile installation with AiMaster takes only 3 steps! Finding your NAS, system initialization and installation, power management, ADM firmware updates, system information and more are all available from the convenience of your mobile device at any time.

PC-less Software Installation

Data Protection Starts with Storage

ASUSTOR understands that your data is priceless, therefore ASUSTOR NAS provides different RAID Volume options, giving your data various levels of protection from the moment it is first stored on the NAS. We recommend you plan your storage protection based on your NAS model and number of hard disks. Data protection has never been so simple.

Data Protection Starts with Storage

Multi-Layered Protection from the Outside in

ASUSTOR NAS ensures data security by creating an in-depth data protection plan that protects your data from the outside in. Utilization of a multi-layered deployment scheme allows for the achievement of active network, system and data protection.

Multi-Layered Protection from the Outside in

Comprehensive Backup Solutions

The AS63 /64 provides over 12 different backup options and is connected to a variety of public cloud storage services including Amazon S3, Dropbox, Google Drive, OneDrive, Box.net, HiDrive, Ralus, WonderBox, xCloud and CrashPlan. You can also use FTP Explorer, USB external hard drive enclosures, external hard drives and local backup to ensure proper backup for your data. No matter if you are using Windows, Mac or Linux, ASUSTOR provides the proper tools for your backup needs.
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Comprehensive Backup Solutions

MyArchive Simplifies Backup

MyArchive cold backup technology allows NAS hard disks to be turned into removable archive hard disks. Users only need to directly insert MyArchive hard disks into their ASUSTOR NAS and it will act as an internal hard disk, allowing users to backup their critical data using local scheduled backups. Backup can be this simple.

MyArchive

  • Saves power during system standby
  • Create an unlimited number of MyArchive hard disks
  • Utilizes built-in SATA 6 GB/s interface for faster data transfers
  • Compatible with add-on NFS/EXT4/HFS+ file system devices
  • Supports AES 256-bit encryption
  • Decryption via physical USB key
  • MyArchive
<hr/>

    App Central

    Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

    App Central

    Created for the Digital Home

    ASUSTOR NAS allows you to enjoy thrilling digital entertainment at any time. Via the built-in HDMI port and various multimedia Apps the NAS can be connected directly to ultra high resolution TVs and players. Enjoy multimedia with family and friends or use the UPnP multimedia server to stream your favorite media to compatible computers and mobile devices.

    Created for the Digital Home

    Mobile Apps

    ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

    Mobile Apps

    First-Class Product Warranty

    All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

    First-Class Product Warranty

    Enhanced Recycle Bin mechanism

    The Network Recycle Bin mechanism has been updated in ADM 2.5.2 and is now based on individual shared folders rather than storage volumes. According to their needs, users can decide whether or not to enable a Network Recycle Bin for each individual shared folder, enjoying added configuration flexibility. Files that are moved to the Recycle Bin maintain their original directory structure, allowing added convenience should users need to search for already deleted files. The simple one-click restore function will restore selected files to their original directory path while conveniently maintaining all properties and permissions settings.

    Ultimate data protection

    ASUSTOR NAS makes use of RAID storage technology to provide protection for your data. RAID mainly revolves around the core concept of combining your disks to protect the data inside. ASUSTOR offers a number of different RAID level configurations that you can choose from when creating storage volumes. Each RAID level offers a differing degree of data protection, system performance and storage space.
    ASUSTOR's supported RAID levels are summarized in the chart below:

    RAID LEVEL

    Single

    JBOD

    RAID 0

    RAID 1

    RAID 5

    RAID 6

    RAID 10

    Minimum number of disks

    1

    2

    2

    2

    3

    4

    4

    Faulty Disks Tolerated

    x

    x

    x

    1

    1

    2

    2

    Increased System performance

    x

    x

    v

    x

    v

    v

    v

    Maximum use of Storage space

    v

    v

    v

    x

    x

    x

    x

    Not enough storage space?

    Insufficient storage space forcing you to consider upgrading your NAS to one with more disk bays?

    ASUSTOR NAS supports online capacity expansion¹  which means that you can easily swap out all your old disks for higher capacity ones without turning off your NAS. Now you can increase the storage capacity of your NAS without worrying about getting an entire new system.



    ¹ You must use RAID 1, 5, 6, or 10

    Uninterrupted access

    During the capacity expansion process, while your data is being transferred over to the new disks, you will still be able to access everything on the NAS. Online capacity expansion does not require any advanced IT skills to execute and helps you to eliminate cumbersome backup and migration procedures. When it's time to upgrade your NAS's capacity, ASUSTOR simply gets the job done for you without missing a beat.

    Uninterrupted access

    The ultimate tool for remote backup

    Rsync is an application originally developed for UNIX that is usually used for backup and sync between two computers. By providing block level replication, Rsync is able to offer incremental backup. Incremental backup allows for successive backup jobs (after your first backup job) to only copy data that has changed since your last backup job. Rsync is suitable for use with files and data that are always changing. It lets you cut down on backup time while significantly reducing bandwidth usage.

    A rich and flexible backup solution

    ASUSTOR's Rsync Backup function supports two-way data transfers, incremental backup, encrypted backup and also the scheduling of your NAS to perform regular backup jobs. It effectively simplifies data backup while also substantially reducing the burden on IT staff. ASUSTOR's Rsync backup function may be used to complete tasks such as:

    • The transfer or backup of data from your NAS to an Rsync compatible server
    • Initiating downloads of the data from an Rsync compatible server to your NAS
    A rich and flexible backup solution

    Regular backups of your vital data

    ASUSTOR's built-in RAID storage technology can provide a certain level of data protection, but regularly backing up the data on your NAS is also very important.

    The External backup function supports two-way data transfers, incremental backups and also the scheduling of your NAS to perform regular backup jobs. It may be used to complete tasks such as:

    • The transfer or backup of the data from your NAS to an external device.
    • Initializing the copying of data from an external device to your NAS

    Create a hybrid cloud, protect and secure your data

    After installing the Google Drive App on ASUSTOR NAS, you will be able to integrate both cloud and personal storage spaces. Google Drive’s supported data transfer methods include downloading and uploading from the NAS to Google Drive and a two-way sync mode. No matter if it is data backup or remote access to data, Google Drive on ASUSTOR NAS is able to meet your needs.

    Note:
    1. Google documents and photos cannot be backed up.
    2. The frequency of synchronization is once every 5 minutes.

    Create a hybrid cloud, protect and secure your data

    Set and forget

    ASUSTOR's Backup Plan software for Windows provides you with worry-free backup. Simply schedule a regular backup job of your PC to your NAS, then let Backup Plan take care of the rest. Backup Plan will work in the background to ensure that your PC is always backed up.

    Real time synchronization

    Any data that is lost between scheduled backups is unprotected. Backup Plan lets you configure real time file synchronization for those important and ever-changing file folders. Any changes that you make to your protected files and folder will be updated in real time. Now you can rest assured knowing that your critical files are always protected and up to date.

    Real time synchronization

    Mission Mode

    Never again worry about your critical backup jobs stopping or failing to complete because your ASUSTOR NAS won't stop until it's 'mission complete'. Sometimes backup jobs may be stopped because of various connection problems with a busy server on the other end. For Rsync, FTP, external and cloud backups, ASUSTOR's Mission Mode allows you to configure the number of connection attempts and time interval for connection attempts, ensuring for the successful completion of your backup mission. This also gives IT administrators a significant amount of flexibility when configuring backup jobs.

    Optimized for your Mac

    Mac lovers rejoice! You can use your Mac's built-in backup, Time Machine, to easily back up your Mac to an ASUSTOR NAS. All ASUSTOR NAS devices have been optimized for use with Time Machine, providing Mac lovers with a familiar and easy to use backup solution.

    Optimized for your Mac

    Multi-user support

    Different Mac users can now safely backup their computers to the same NAS device. Unlike other NAS devices, ASUSTOR NAS does not just use one group account to carry out backup jobs for all Mac users, storing all their jobs under the same directory. With ASUSTOR NAS each Mac user is able to use an independent account and backup location thereby guaranteeing privacy for all.

    A cost-effective and efficient mail service solution

    The ability to send and receive email is fundamental to all businesses. However, expensive implementation costs and complicated management create barriers for most small and medium sized businesses. ASUSTOR’s Mail Server offers a comprehensive and cost-effective solution that allows any business to easily maintain their own dedicated mail server.

    A cost-effective and efficient mail service solution

    Your own FTP server

    FTP is one of the most widely used and popular transfer protocols in the world. Every ASUSTOR NAS has a built-in FTP server feature that allows you to create a personal FTP server in just a matter of seconds. Hosting your own FTP server will instantly give you the power to share and exchange files over the internet.

    Firewall

    Use ADM Defender's firewall to control access to your NAS. Ensure the security of your system by deciding who has access to your NAS and who doesn't.

    Firewall

    Secure connections

    ASUSTOR NAS supports VPN connections giving you secure access and flexible deployment options. Your NAS is able to act as a VPN client which can then connect to VPN servers via PPTP or OpenVPN protocols, allowing you to gain access to different virtual private networks. ASUSTOR NAS also supports the creation of multiple VPN connection profiles allowing you to easily switch connections between different VPN networks.

    Network Defender

    ADM Defender's Network Defender function protects you from malicious attacks and prevents hackers from trying to access your NAS. Any client IP addresses with too many unsuccessful login attempts to your NAS within a specified time period will be blocked by Network Defender.

    Network Defender

    Effectively simplifying network management

    Syslog Server supports standard Syslog protocols and can centrally aggregate system logs that are spread out over various network devices for storage and management. Furthermore, Syslog Server integrates with the NAS’s Instant Notification function, allowing administrators to receive e-mails or SMS notifications when specified events occur, in order to quickly employ appropriate measures.

    Military Grade Encryption

    Your most important data deserves the best security. ASUSTOR NAS offers folder based military grade AES 256bit encryption, giving you the type of security and privacy that you require for your most confidential data. All data stored in encrypted folders will be automatically encrypted and secured to the highest of standards. Should you ever lose your NAS or hard disks, you still needn't worry about your sensitive data falling into the wrong hands.

    Military Grade Encryption

    Folder-based efficiency

    Unlike other NAS devices, ASUSTOR NAS gives you the flexibility to select the individual folders that you want to encrypt. Other NAS devices encrypt entire storage volumes which significantly slows down the system. Any encrypted portions of storage volumes will be subject to a decrease in performance. However, with ASUSTOR NAS you are free to encrypt only your most confidential data while leaving other data unencrypted, creating a perfect balance between performance and security.

    No more waste

    Still wasting money and time burning CDs or DVDs every time you need to install some software? ASUSTOR NAS supports the mounting of ISO files which provides you with a cost effective and environmentally friendly solution that effectively lowers CD and DVD waste.

    No more waste

    External Optical Drive Support

    After connecting an external optical drive (CD, DVD, Blu-ray) to your NAS via USB, you can use File Explorer to directly access any files that you have backed up to optical media and even transfer files from your optical media to your NAS via drag and drop for future access.

    Note:
    1. This function only provides data access and does not support the audio and video playback of optical media.
    2. Certain optical drives will require additional power in order to operate properly. If you find that your optical drive is not spinning or reading correctly, please use a USB Y-cable to add additional power.

    Unleash unlimited potential

    The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. App Central allows you to explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

    Unleash unlimited potential

    iSCSI LUN Snapshots

    Stable, fast and capacity-saving

    ASUSTOR’s snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups. Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service.

    Keep an eye on it

    Worried about leaving your home unattended? Keep an eye on the most important things with Surveillance Center. Surveillance Center's fully optimized interface allows you to simultaneously view live feeds from up to 4 IP cameras, take snapshots and control the pan tilt and zoom functions of all cameras giving you complete peace of mind.

    Keep an eye on it

    The best things in life are free

    ASUSTOR's Surveillance Center comes with 4 license free channels letting you to setup 4 different network IP cameras. This significantly lowers startup costs for your surveillance system. No matter if you prefer to use Microsoft Internet Explorer, Mozilla Firefox or Google Chrome, Surveillance Center's easy-to-use browser based interface and quick start wizard will allow you to create a security surveillance system in a snap.

    A movie theatre in the palm of your hand

    AiVideos brings you the smoothest mobile video viewing experience around. Browse through the video collection on your NAS without needing to wait for long downloads. Enjoy high-definition 1080p streaming video with just one click.
    You can even select multilingual subtitles and different audio channels to enjoy films in different languages, bringing the movie theatre to your mobile device.

    *Recommended to be used with MXplayer
    Supported mobile: Android only

    A movie theatre in the palm of your hand

    Enjoy more offline video content

    You can even view videos offline! Download videos from your NAS to your phone in a just a few taps without needing to connect an external USB cable.
    Sometimes you may encounter unstable Wi-Fi reception causing long wait times for your downloads. At this time you can switch to a more stable Wi-Fi signal and AiVideos will resume your downloads from where they were interrupted. With this convenient feature, you no longer need to worry about half-downloaded files!

    Stay Connected to Everything You Care About with AiSecure

    The AiSecure dedicated mobile app allows you to easily keep an eye on everything that is happening at home. In addition to monitoring live views of particular locations, AiSecure also features instant push notifications that can be sent to your mobile device when specified events occur, allowing you to grasp all the latest developments in the palm of your hand.

    Stay Connected to Everything You Care About with AiSecure

    Simple to Set Up

    AiSecure dramatically simplifies the connection process to your surveillance feeds.* After enabling Cloud Connect on your NAS, you will be able to use your dedicated Cloud ID to connect to Surveillance Center, allowing you to easily monitor all the important things in your life from any corner of the world.

    *AiSecure provides 3 different connection methods:
    1. Connecting via Cloud ID.
    2. Connecting via Auto Discovery to ASUSTOR devices on the same network.
    3. Connecting via IP/Hostname.

    Your mobile cloud data manager

    Get access to your data in the cloud and on your NAS from the convenience of your mobile device with ASUSTOR's AiData mobile app. With its intuitive interface and incorporation of well-known cloud storage services, AiData allows you to manage all the files on your NAS and across the cloud.

    Your mobile cloud data manager

    Convenient features

    AiData features a host of convenient features to enrich your digital lifestyle. Use your mobile device to rename, copy, move or delete data on your NAS. Save items as favorites for quick offline browsing while on the go or upload your photos directly from your phone to your NAS. Have a file on your NAS that you want to share? Instantly email download links to your friends and family. AiData's features truly let you take advantage of your personal cloud.
    for iOS
    ITunes
    for Android
    Google Play
    for Android
    Asustor



    Intuitively integrated

    You can download data from your NAS to any folder on your Android/iOS device or upload files from folders on your Android/iOS device to your NAS. Now, data on your NAS and the rich variety of apps on your mobile devices can be more closely integrated than ever before.

    When browsing through the substantial amount of data on your NAS, you can choose to list files in ascending or descending order according to filename, size or date modified, giving you better organization when managing files.

    Intuitively integrated

    Enhanced Mobile Privacy Protection

    Worried about losing your phone and accidentally giving someone full access to all the data on your NAS? Passcode protection is your first line of defense. When using passcode protection, you will need to enter a correct passcode before being able to use an ASUSTOR mobile app. This significantly enhances mobile privacy while ensuring that you won’t have to worry about accidentally giving someone access to your NAS.

    The most intuitive way to browse through your photos

    AiFoto presents each photo using refined thumbnail previews. Effortlessly browse through all your favorite memories stored on your NAS with just the swipe of a finger.

    The most intuitive way to browse through your photos

    Automatic photo uploading

    The automatic camera roll upload function ensures that you will never have to worry about how to backup your photos. Let AiFoto automatically take care of your backup needs! You can also open an online album and take photos that will be automatically uploaded to the album, giving you easy organization of your photos.

    *Note: Due to the limitations of iOS, iOS apps cannot perform automatic photo uploading background tasks for more than 3 to 10 minutes. Please keep the app running when trying to upload photos.

    Offline album encryption

    People will always be curious. Protect your privacy with password encrypted offline albums to create a private space that belongs to you and you alone.

    Offline album encryption

    Terabytes of music in the palm of your hand

    AiMusic allows you to stream music from your NAS to your mobile device, letting you enjoy your entire music collection while on the go.

    A variety of listening experiences

    Play music from playlists that you create yourself for an optimal listening experience. Like listening to random songs? AiMusic's Random songs play mode is your best friend! You need only select it once to create a random playlist from your entire music collection, allowing you to enjoy a new listening experience each and every time.

    A variety of listening experiences

    Listen to your favorite songs while offline

    AiMusic also allows you to download songs from your NAS to your mobile device for offline listening. No matter if it is is a single song, an album or an entire playlist, all can be easily downloaded to your mobile device for convenient listening.

    Download on the go

    Imagine the convenience of downloading while on the go and then having your downloads ready as soon as you get home. With ASUSTOR's AiDownload, all this is possible and more. AiDownload is a mobile app that works with ASUSTOR's Download Center to provide you with download management on mobile. Searching, downloading, configuring and monitoring can all be done with AiDownload. Torrent* magnets also automatically add download tasks to AiDownload, making downloading easier than ever!

    Download on the go

    NAS management at your fingertips

    AiMaster is ASUSTOR's NAS management app for mobile devices that allows you to easily control all your NAS devices no matter if you are a home user or IT administrator.

    Instant notifications

    AiMaster features real-time system event notifications allowing you to monitor your system status from the convenience of your mobile device. When certain events occur, notifications are sent to your mobile device in the form of push notifications helping you stay abreast of all the latest developments.

    Instant notifications

    Stay in sync with your NAS

    With AiMaster you are never far from your NAS. Manage all your services, applications, and backup jobs at any time and from any place. Execute one touch backup jobs and monitor all users and system status. Even use the Find Me function to locate your NAS among many. All this is possible and more with AiMaster.

    Your mobile device as your remote

    Now your phone can become a remote control for the ASUSTOR Portal.

    AiRemote allows you to control all types of functionality on the ASUSTOR Portal. From the basic up, down, left, right controls used with the ASUSTOR Portal interfaces to the play, pause, rewind, fast forward and volume controls used when playing videos, AiRemote has got you covered.

    Your mobile device as your remote

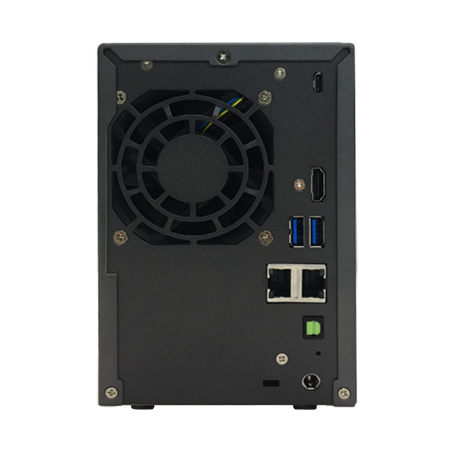

    Hardware Specifications

    AS6302T
    CPU Intel Celeron J3355 Dual-Core 2.0 GHz (burst up 2.5GHz) Processor
    Memory 2GB SO-DIMM DDR3L (1GB x2, Expandable. Max 8GB)¹
    HDD 2 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
    Expansion USB 3.0 x 4 (Type A x3, Type C x1)
    Maximum Drive Bays with Expansion Unit 14
    Size 163.5(H) x 108(W) x 230(D) mm
    Power Consumption 13.8 W (Operation);
    7.2 W (Disk Hibernation);
    0.34 W (Sleep Mode)

    Software & Features

    Operating System

    • ADM 3.1 Onwards
    • Supports Online Firmware Updates

    Supported OS

    • Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
    • Mac OS X 10.6 Onwards
    • UNIX, Linux, and BSD

    Supported Languages

    • Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar

    Supported Browsers

    • Internet Explore 11 Onwards
    • FireFox
    • Chrome
    • Safari
    • Microsoft Edge

    Network Protocols

    • CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

    File System

    • Internal Disk: EXT4
    • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT

    iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN

    • Maximum Targets: 256
    • Maximum LUNs: 256
    • Maximum Snapshot Versions of a Single LUN: 256
    • Target Masking
    • LUN Mapping
    • ISO File Mounting
    • Supports MPIO
    • Persistent (SCSI-3) Reservations

    Customized Sign In Page

    • 2 Different Template Choices
    • Customizable Title, Imageand Background
    • Image Import Function

    Disk Management

    • Scheduled Bad Block Scans
    • Scheduled S.M.A.R.T Scans

    Energy Control

    • Configurable Disk Hibernation and Sleep Mode Wait Time
    • Configurable Time Period for Sleep Mode Activation
    • Automatic Sleep

    Network

    • TCP/IP (IPv4 & IPv6)
    • Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
    • Jumbo Frame (MTU)
    • VLAN
    • EZ Connect
    • Wireless Network³
    • DDNS and EZ-RouterCompatibility
    • Supports Wake-on-LAN (WOL)

    Backup Solutions

    • Rsync (Remote Sync) Backup
    • Cloud Backup
    • FTP Backup
    • External Backup
    • One Touch Backup

    System Administration

    • Log Type: System Log, Connection Log, File Access Log
    • Real-time Online User Monitor
    • Real-time System Monitor
    • User Quota
    • Virtual Drive (ISO Mounting, Maximum 16)
    • UPS SupportCompatibility

    Network Recycle Bin

    • Share folder-based
    • Maintains original directory structure and file permission
    • On-click restore
    • Supports scheduled emptying
    • Filtering rules
      1. File size
      2. File extension

    Access Control

    • Maximum Number of Users: 4096
    • Maximum Number of Groups: 512
    • Maximum Number of Shared Folders: 512
    • Maximum Number of Concurrent Connections: 512
    • Supports Windows Active Directory
    • Supports Windows Active Directory / LDAP

    ACL

    • Provides both Windows ACL and Linux ACL permission configuration methods
    • Can enable Windows ACL for specific shared folders
    • Comprehensive support for Windows’ 13 types of advanced permission settings
    • Can view Windows ACL permission settings from within ADM
    • Supports local users and groups
    • Exclusive permission reset function allows users to quickly restore default permissions

    Security

    • AES 256-Bit Encryption
    • Firewall: Prevent Unauthorized Access
    • Alert Notifications: E-mail, SMS
    • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
    • Built-in Hardware Encryption Engine: AS70/64/63//62/61/31/32/10 Series

    Network Defender

    • Auto black list
    • Trusted list
    • Black/White list
      • Supports IP/IP range/geolocation

    External Devices Compatibility

    • Supports USB/eSATA3 External Storage Devices
    • USB Wi-Fi Dongle Support
    • Bluetooth Dongle/Speaker Support
    • USB Printer Support
    • USB DAC/IR Receiver/Keyboard/Mouse Support
    • CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

    Featured Apps

    Antivirus

    • Scheduled Scans
    • Automatic Virus Definition Updates
    • Quarantine Infected Files

    ASUSTOR Portal(HDMI Local Output)⁶

    • Supports Output for 4 Channels of Megapixel IP Camera Video Feeds
    • Support Chrome / Chromium browsers.
    • Downloads from Chrome/Chromium Automatically Saved to the NAS
    • Power Control Settings: Power on, Sleep, Restart and Wake via Remote
    • Customizable ASUSTOR Portal Desktop Wallpaper
    • Add Shortcuts to Favorite Websites
    • Increased TV Compatibility via Overscan and Resolution Settings
    • Max. Resolution: 1080p(HD)/2160p(4k)
    • ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
    • After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Google+, Hangouts, Pinterest, Twitter, Linkedin, WhatsApp and Instagram.

    VirtualBox

    • Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, Mac OS X
    • Virtual Machine Import Format: OVF
    • Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
    • Virtual Machine Snapshots
    • Virtual Machine HDMI Audio Output
    • Physical NAS Network Port can be Designated for use by Specific Virtual Machine

    Download Center

    • Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
    • Torrent Search
    • Choose Files Before a BT Task Starts
    • Customizable Download Schedule
    • Bandwidth Control
    • RSS Subscription and Automatic Downloading (Broadcatching)
    • ASUSTOR Download Assistant for Windows & Mac
    • AiDownload for Android with Push Notification
    • Smart Download Function

    DataSync for Microsoft OneDrive

    • Each ADM account is able to individually log into a OneDrive account
    • Supports file filter and bandwidth limitation
    • Supported backup methods:
      • Sync
      • Directly upload files to OneDrive from NAS
      • Directly download files from OneDrive to NAS

    DropBox

    • Each ADM Account is Able to Individually Log in to One Dropbox Account
    • Supported Backup Methods:
      • Sync
      • Dropbox to NAS
      • NAS to Dropbox

    File Explorer

    • Web-based File Management
    • ISO File Mounting
    • Share Links
    • Task Monitor
    • Browse Files on Local PC
    • Thumbnail Previews
    • Data Access via External Optical Drive
    • Supports video playback¹⁰

    FTP Explorer

    • Directory Structure View with Drag & Drop Transfers
    • Task Monitor
    • Stopping of Transmission Task & Resumption of Connection
    • Encrypted Connections: Explicit over TLS, Implicit over TLS
    • FTP Site Manager
    • Bandwidth Control
    • Maximum Simultaneous Transfer Control

    Google Drive

    • Each ADM Account is Able to Individually Log in to One Google Account
    • Supported Backup Methods:
      • Sync
      • Directly Upload Files to Google Drive from NAS
      • Directly Download Files from Google Drive to NAS

    HiDrive

    • Support OneDrive and OneDrive Business
    • Each ADM Account is Able to Individually Log in to One HiDrive Account
    • Supported Backup Methods:
      • Directly Upload Files to HiDrive from NAS
      • Directly Download Files from HiDrive to NAS
    • Supported Protocols:
      • Rsync
      • FTP
      • FTPS
      • SFTP
      • Rsync + SSH

    LooksGood

    • Built-in three main video library categories (Movies, TV Shows, Home Movies) and smart video sorting management
    • Efficient Global Search function allows for searches by keywords followed by the execution of more detailed searches according to the Movies, TV Shows, Home Movies categories and parameters such as actors, director, year, genre, writer, and title
    • Attractive poster wall and thumbnail display
    • Automatic production of video poster thumbnails
    • Centralized management and ability t o configure order of favorites and playlist history
    • System administrator can configur e video library and editing permissions according to user
    • Can configure access permissions to share with
      friends and family
    • Multimedia conversion function
    • Self-defined smart folder for video conversions
    • Supports digital TV recordings via digital TV dongles
    • Easy streaming with Chromecast and DLNA
    • Support to watch videos in Apple TV via AiVideos tvOS version

    iTunes Server

    • For iTunes on Mac & Windows
    • Supports AirPlay
    • Supports iOS Remote Pairing
    • Supported Audio Formats: AIF⁵, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV⁵
    • Supported Video Formats: M4V, MOV, MP4
    • Supported Playlist Formats: M3U, WPL

    Mail Server

    • Each ADM Account can Become an Independent Email Account
    • Email Activity Monitor (Over 1 Week, 1/3/6 Months)
    • Provides SMTP, IMAP and POP3 Mail Protocols
    • Supports SMTP Relay and Verification
    • SMTP-SSL Secure Connections
    • Spam Filter and Black List Settings
    • Antivirus Scanning for Emails
    • Email Alias Creation and Mapping
    • Monitoring of Mail Queue
    • Mail Service Activity Log
    • Exclusive Email Backup Mechanism
    • Auto-Forwarding and Auto-Response Protocols

    Photo Gallery

    • “Album” and “Browse” Viewing Modes
    • Manage Photo Album Access Rights: Public Access, Restricted to Certain Accounts, Album Password
    • Multi-level Folder Structure Support
    • Supports Tagging of Photos
    • Intuitive Sorting and Comprehensive Search Function
    • Adjustable Photo Wall Browsing Scales
    • Automatic Image Rotation
    • One-click Sharing to Social Media (Facebook, Google+, Twitter, Plurk, email)
    • Intuitive Drag and Drop Management
    • Slideshow Viewing Mode
    • Provides Comment Function for Users to Interact with Each Other.
    • Supports a Wide Range of Image Formats: JPG/JPEG, GIF, PNG, BMP, TIFF, RAW
    • Supports Video Playback

    VPN Server

    • Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
    • View Current Connections & Ability to Disconnect Suspicious Connections
    • Comprehensive Connection Log

    SNMP Server

    • Supports SNMP v1, v2c, v3 and trap
    • ASUSTOR NAS MIB provided

    Syslog server

    • Supports standard syslog protocol
    • Graphical log monitoring by time and device
    • Supports TCP and UDP
    • Auto log archiving
    • User-defined email notification

    Surveillance Center

    • Up to 36 channels in 720p on single live view display
    • On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
    • Up to 4 channels of synchronous and non-synchronous playback with audio
    • Intelligent video analytics including motion detection and foreign object detection
    • Supported Browsers: Windows Internet Explorer, Microsoft Edge, Firefox, Mac Safari, Mac Firefox ESR
    • Event notification supports SMS, E-mail, and mobile push notification
    • Automated event action rules
    • Role-based access control
    • RTSP streaming server (video and audio)
    • AiSecure mobile app for iOS and Android with Push notification
    • ONVIF™ 2.4, Profile S certified
    • CMS Lite supports connect up to 128 IP Cameras from 32 NAS
    • Two different camera license packages are offered: single channel and 4 channels.
    • Maximum IP Cam (4 Free Licenses; Additional Licenses to be Purchased)
    Series Maximum IP cam Local display
    AS7 64 Yes
    AS63/64 36 Yes
    AS61/62 36 Yes
    AS50/51 30 Yes
    AS31/32 25 Yes
    AS40 16 N/A
    AS-6 16 Yes
    AS-2TE/AS-3 8 Yes
    AS-2T 8 N/A
    AS10 8 N/A
    • Minimum PC Client Requirements
      • CPU: i5/i7 or above
      • RAM: DDR3 4G or above
      • Operating system Windows 7 and onward, Mac OS X
      • Windows browsers: Firefox 32-bit, IE11 32-bit onwards (excluding Microsoft Edge)
      • Mac browsers: Safari 7.0, Firefox
      • Display resolution: 1280x800 pixels or higher for best user experience
      • Network interface: Gigabit x1
      • Independent graphics card is highly recommend

    SoundsGood

    • Import Personal/Public Music Collection
    • Personal/Public Music Collection Permission Control
    • Playlist Editor
    • ID3 Tag Editor
    • Local Speaker Support: HDMI, USB, Audio Jack
    • Supported Audio Formats for Browser: MP3, WAV, Ogg
    • Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
    • Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
    • ASUS DAC Support

    Takeasy

    • Download from YouTube, Vimeo, Twitch and More
    • Selectable Video Type and Quality
    • Automatic Downloads with YouTube or Twitch Subscriptions
    • Preview Downloads in Progress
    • Online Playback

    UPnP Media Server

    • Supports PS3 and other Digital Media Player Capable Devices
    • Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
    • Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

    VPN Client

    • Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec
    • Transmission Package Monitor
    • PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
    • PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
    • OpenVPN Port Control
    • OpenVPN Link Compression

    Note:

    1. Metadata (e.g. title) may not be able to displayed in iTunes.
    2. You must first enable real time transcoding for these files in order to play them.
