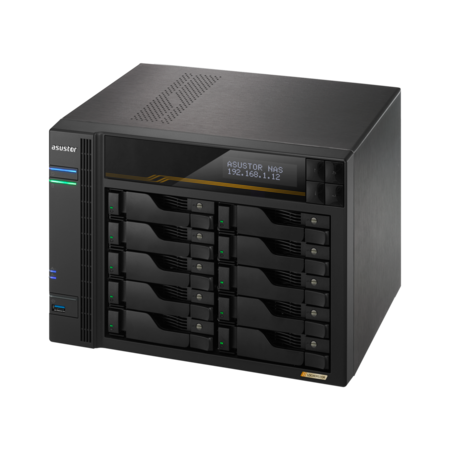

AS6810T

    • Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
    • 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
    • Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
    • 2x USB4 ports at 40 Gbps
    • 3x USB 3.2 Gen 2 Type-A at 10 Gbps
    • 2x 10-Gigabit Ethernet
    • 2x 5-Gigabit Ethernet
    • Supports Wake on LAN and Wake on WAN (5 GbE)

AS68 Lockerstore Gen3

M.2 NVMe SSD allows data to sprint forward

AS68 Lockerstore Gen3

Dual 10GbE

AS68 Lockerstore Gen3

Dual USB4

AS68 Lockerstore Gen3

ECC RAM

AS68 Lockerstore Gen3

Collaborate from almost anywhere

ASUSTOR Storage with Adobe Creative Cloud

Ryzen Up to the Challenge!

AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.

Intel Celeron N5105

Server-grade ECC memory

ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

Server-grade ECC memory

Speeds keep Ryzen and Ryzen!

The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.

Speeds keep Ryzen and Ryzen!

PCI Express 4.0 Brings Doubled Performance

The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.

PCI Express 4.0 Brings Doubled Performance

USB4 is More Than Just Storage

The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.
When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

USB4 is More Than Just Storage

The Hottest NAS Ever is also the Coolest

With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.

The Hottest NAS Ever is also the Coolest

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Exclusive MyArchive Cold Backup Technology<br/>Unlimited Capacity Expansion

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Network Attack Protection
  • Firewall
  • ADM Defender
  • Cloud Backup Center offsite backups
Secure Data Transmission
  • VPN connection
  • SSL certificate connection
  • Automatic logout
Internal Data
  • AES-256 folder encryption
  • Antivirus software
  • MyArchive
Access Control
  • File/folder/app isolation
  • 2-Step Verification
  • Wake-on-LAN (WOL)
  • Wake-on-WAN (WAN)

Protected From the Inside and Out

Snapshot Center

Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

Snapshot Center

DataSync Center

DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

DataSync Center

Cloud Backup Center

Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center

Create the Ultimate Home Multimedia Center

Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

SoundsGood
+
AiMusic

Photo Gallery 3
+
AiFoto 3

LooksGood
+
AiVideos

Photo Gallery 3 + AiFoto 3

The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.

Photo Gallery 3 + AiFoto 3

Portainer – Easy Docker Deployments

Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Portainer – Easy Docker Deployments

Dr. ASUSTOR

ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Dr. ASUSTOR

Mobile Apps

ASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

Mobile Apps

App Central

Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

App Central
First-Class Product Warranty

First-Class Product Warranty

All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

Simple to Set Up

AiSecure dramatically simplifies the connection process to your surveillance feeds.* After enabling Cloud Connect on your NAS, you will be able to use your dedicated Cloud ID to connect to Surveillance Center, allowing you to easily monitor all the important things in your life from any corner of the world.

*AiSecure provides 3 different connection methods:
1. Connecting via Cloud ID.
2. Connecting via Auto Discovery to ASUSTOR devices on the same network.
3. Connecting via IP/Hostname.

Listen to your favorite songs while offline

AiMusic also allows you to download songs from your NAS to your mobile device for offline listening. No matter if it is is a single song, an album or an entire playlist, all can be easily downloaded to your mobile device for convenient listening.

Listen to your favorite songs while offline

External Optical Drive Support

After connecting an external optical drive (CD, DVD, Blu-ray) to your NAS via USB, you can use File Explorer to directly access any files that you have backed up to optical media and even transfer files from your optical media to your NAS via drag and drop for future access.

Note:
  1. This function only provides data access and does not support the audio and video playback of optical media.
  2. Certain optical drives will require additional power in order to operate properly. If you find that your optical drive is not spinning or reading correctly, please use a USB Y-cable to add additional power.

A cost-effective and efficient mail service solution

The ability to send and receive email is fundamental to all businesses. However, expensive implementation costs and complicated management create barriers for most small and medium sized businesses. ASUSTOR’s Mail Server offers a comprehensive and cost-effective solution that allows any business to easily maintain their own dedicated mail server.

A cost-effective and efficient mail service solution

Your Data at your Fingertips

In addition to browsing files in an ASUSTOR NAS with a web browser, shared folders are directly accessible on your phone or tablet through AiData. Mounted CIFS folders, USB external devices, MyArchive hard drives and EZ Sync synchronization data are all supported and can be easily accessed, moved or copied from within AiData.

Easy File Management

AiData provides a variety of file management features. AiData supports downloading and uploading files for backups. When browsing a large amount of data on the NAS, AiData supports both grid and list views to display, sort and manage files for better organization.

Easy File Management

Extending Windows permissions management to your NAS

ASUSTOR NAS provides comprehensive support for all 13 Windows ACL file permissions, allowing for close integration with AD domains and providing simplified IT management and increased productivity. According to needs, IT professionals can enable and disable Windows ACL for specific shared folders and can use ADM File Explorer or Windows Explorer to configure permissions. Configured ACL permissions can be applied to Samba, File Explorer, AFP, FTP and WebDAV protocols, avoiding the need to configure permissions for each individual protocol and avoiding human errors that could cause access leaks.
Furthermore, in order to allow files to maintain their original ACL settings after they have been moved to the NAS, ASUSTOR NAS supports the free 3rd party software FastCopy, for this unique job.

A movie theater in the palm of your hand

AiVideos brings you the smoothest mobile video viewing experience from NAS. Browse through the video collection on your NAS without needing to wait for long downloads from the Internet. Enjoy high-definition video streaming with just one click. AiVideos also supports multilingual subtitles and different audio channels to make enjoying films in different languages easy. Use AiVideos to bring the theater to your phone, tablet and set top box.

A movie theater in the palm of your hand

Offline Playback

Use your wireless network to download videos on your NAS to your phone or tablet with AiVideos. AiVideos supports offline video playback for enjoyment of movies when away from the house without using mobile data that may have bandwidth limits or poor reception.

Keep an eye on it

Worried about leaving your home unattended? Keep an eye on the most important things with Surveillance Center. Surveillance Center's fully optimized interface allows you to simultaneously view live feeds from up to 4 IP cameras, take snapshots and control the pan tilt and zoom functions of all cameras giving you complete peace of mind.

Keep an eye on it

Stay Connected to Everything You Care About with AiSecure

AiSecure allows you to easily keep an eye on everything that is happening at home. In addition to monitoring live views of particular locations, AiSecure also features instant push notifications that can be sent to your mobile device when specified events occur, allowing you to grasp all the latest developments in the palm of your hand.

A variety of listening experiences

Play music from playlists that you create yourself for an optimal listening experience. Like listening to random songs? AiMusic's Random songs play mode is your best friend! You need only select it once to create a random playlist from your entire music collection, allowing you to enjoy a new listening experience each and every time.

A variety of listening experiences

Unified Storage

iSCSI and NFS are primary datastore solutions for virtual environments and are also important in spreading the use of virtualization as a whole. When compared with other storage mediums, ASUSTOR NAS can offer an optimal price/performance ratio and value which is of particular importance to small and medium businesses.

Comparison between Unified Storage and traditional storage devices:

FC SAN

iSCSI

NAS (NFS, CIFS)

Unified Storage

Performance

Excellent

Good

Good

Good

Protocol Level

Block

Block

File

Block & File

Cost

$$$$$

$$$$

$$

$$$

iSCSI LUN Snapshots
Stable, fast and capacity-saving

ASUSTOR’s snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups. Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service.

iSCSI LUN Snapshots<br/>Stable, fast and capacity-saving

Ideal off-site backup solution

Using the internal backup function allows users to completely utilize the SATA interface’s 6Gbps high speed transfers to backup data to MyArchive hard disks. No matter if it’s confidential data storage or the archiving of video recording files, all can be scheduled to be backed up to MyArchive hard disks and then transferred to a secure location for safekeeping, meeting the goals of limitless expansion and off-site backup.

Effectively simplifying network management

Syslog Server supports standard Syslog protocols and can centrally aggregate system logs that are spread out over various network devices for storage and management. Furthermore, Syslog Server integrates with the NAS’s Instant Notification function, allowing administrators to receive e-mails or SMS notifications when specified events occur, in order to quickly employ appropriate measures.

Effectively simplifying network management

Supports Let’s Encrypt

Let’s Encrypt is a free, automated, and open certificate authority (CA), that provides a trusted certificate for free to anyone who owns a domain name. Let’s Encrypt issued certificates are recognizable by all Web browsers. The Certificate Manager in ASUSTOR NAS can directly connect to Let’s Encrypt to generate a valid certificate and install it automatically. This helps you to enhance NAS security with an SSL connection in a fast and easy way at zero cost. Moreover, before the Let’s Encrypt issued certificate expires, Certificate Manager can be configured to perform an automatic renewal.

Strengthen ADM Account Security

2-Step verification provides additional security for your ADM account. After configuration, in addition to your ADM account password, you will also need a phone verification code to sign in to ADM. With 2-step verification, you can protect ADM account privacy and ensure data security with both a password and your personal mobile device.

Supported authentication app:
Windows phone: Authenticator
Android、iOS、Blackberry: Google Authenticator

Strengthen ADM Account Security

Enhanced Recycle Bin mechanism

The Network Recycle Bin mechanism has been updated in ADM and is now based on individual shared folders rather than storage volumes. According to their needs, users can decide whether or not to enable a Network Recycle Bin for each individual shared folder, enjoying added configuration flexibility.
Files that are moved to the Recycle Bin maintain their original directory structure, allowing added convenience should users need to search for already deleted files. The simple one-click restore function will restore selected files to their original directory path while conveniently maintaining all properties and permissions settings.

Easily Set Up Your NAS

AiMaster enables you to initialize and activate your NAS immediately through your phone or tablet. Easily monitor your ASUSTOR NAS, add users, download and install apps, update ADM and adjust ADM settings, making the new AiMaster easier than ever.

Easily Set Up Your NAS

All-New Login Page

The all-new login page can share login information between other installed ASUSTOR mobile apps, eliminating the need to enter login info multiple times. NAS devices that support Wake on LAN or WAN can directly be woken up by AiMaster.

Easily Set Up ADM

AiMaster is an app for phones and tablets for controlling and adjusting ADM settings.

Easily Set Up ADM

Firewall

Use ADM Defender's firewall to control access to your NAS. Ensure the security of your system by deciding who has access to your NAS and who doesn't.

Regular backups of your vital data

ASUSTOR's built-in RAID storage technology can provide a certain level of data protection, but regularly backing up the data on your NAS is also very important.

The External backup function supports two-way data transfers, incremental backups and also the scheduling of your NAS to perform regular backup jobs. It may be used to complete tasks such as:

  • The transfer or backup of the data from your NAS to an external device.
  • Initializing the copying of data from an external device to your NAS

Regular backups of your vital data

The ultimate tool for remote backup

Rsync is an application originally developed for UNIX that is usually used for backup and sync between two computers. By providing block level replication, Rsync is able to offer incremental backup. Incremental backup allows for successive backup jobs (after your first backup job) to only copy data that has changed since your last backup job. Rsync is suitable for use with files and data that are always changing. It lets you cut down on backup time while significantly reducing bandwidth usage.

A rich and flexible backup solution

ASUSTOR's Rsync Backup function supports two-way data transfers, incremental backup, encrypted backup and also the scheduling of your NAS to perform regular backup jobs. It effectively simplifies data backup while also substantially reducing the burden on IT staff. ASUSTOR's Rsync backup function may be used to complete tasks such as:
  • The transfer or backup of data from your NAS to an Rsync compatible server
  • Initiating downloads of the data from an Rsync compatible server to your NAS

A rich and flexible backup solution

Mission Mode

Never again worry about your critical backup jobs stopping or failing to complete because your ASUSTOR NAS won't stop until it's 'mission complete'. Sometimes backup jobs may be stopped because of various connection problems with a busy server on the other end. For Rsync, FTP, external and cloud backups, ASUSTOR's Mission Mode allows you to configure the number of connection attempts and time interval for connection attempts, ensuring for the successful completion of your backup mission. This also gives IT administrators a significant amount of flexibility when configuring backup jobs.

Set and forget

ASUSTOR's Backup Plan software for Windows provides you with worry-free backup. Simply schedule a regular backup job of your PC to your NAS, then let Backup Plan take care of the rest. Backup Plan will work in the background to ensure that your PC is always backed up.

Set and forget

Unleash unlimited potential

The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. App Central allows you to explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

Enjoy peace of mind

Always checking up on your NAS? Worried about your data and other digital assets? ASUSTOR NAS features real-time system event notifications allowing you to enjoy peace of mind knowing that you'll be notified about any major system events. Notifications can be sent via E-mail, SMS or push notification giving you a variety of ways to instantly stay on top of the latest developments.

Supported E-mail service provider: Google, Microsoft, Others (self-defined)
Supported SMS service provider: Clickatell, Pushbullet

Enjoy peace of mind

Optimized for your Mac

Mac lovers rejoice! You can use your Mac's built-in backup, Time Machine, to easily back up your Mac to an ASUSTOR NAS. All ASUSTOR NAS devices have been optimized for use with Time Machine, providing Mac lovers with a familiar and easy to use backup solution.

Your own FTP server

FTP is one of the most widely used and popular transfer protocols in the world. Every ASUSTOR NAS has a built-in FTP server feature that allows you to create a personal FTP server in just a matter of seconds. Hosting your own FTP server will instantly give you the power to share and exchange files over the internet.

Your own FTP server

Military Grade Encryption

Your most important data deserves the best security. ASUSTOR NAS offers folder based military grade AES 256bit encryption, giving you the type of security and privacy that you require for your most confidential data. All data stored in encrypted folders will be automatically encrypted and secured to the highest of standards. Should you ever lose your NAS or hard disks, you still needn't worry about your sensitive data falling into the wrong hands.

No more waste

Still wasting money and time burning CDs or DVDs every time you need to install some software? ASUSTOR NAS supports the mounting of ISO files which provides you with a cost effective and environmentally friendly solution that effectively lowers CD and DVD waste.

No more waste

Network Defender

ADM Defender's Network Defender function protects you from malicious attacks and prevents hackers from trying to access your NAS. Any client IP addresses with too many unsuccessful login attempts to your NAS within a specified time period will be blocked by Network Defender.

The best things in life are free

ASUSTOR's Surveillance Center comes with 4 license free channels letting you to setup 4 different network IP cameras. This significantly lowers startup costs for your surveillance system. No matter if you prefer to use Microsoft Edge, Mozilla Firefox or Google Chrome, Surveillance Center's easy-to-use browser based interface and quick start wizard will allow you to create a security surveillance system in a snap.

The best things in life are free

Seamless integration

Windows Active Directory (AD) is a directory service created by Microsoft, widely used by many corporations, that allows IT administrators to centralize and manage resources over a network. Understanding the account integration needs that businesses have, ASUSTOR has ensured that all its NAS devices are able to seamlessly integrate with Windows AD. After an ASUSTOR NAS has been successfully added to a Windows AD domain, AD users will then be able to use their own AD accounts to log in to and access the NAS. This provides simple and efficient management for IT staff as they do not need to create new accounts for every NAS added to the domain.

Easy management

Managing large scale IT environments have always been the heaviest burden for IT managers. ASUSTOR has made continuous efforts in this area to help IT staff simplify their responsibilities and reduce their burden. ADM's easy to use interface provides management tools for network users and groups, allowing IT administrators to configure different folder access rights for each Windows AD user and group.

Easy management

Secure connections

ASUSTOR NAS supports VPN connections giving you secure access and flexible deployment options. Your NAS is able to act as a VPN client which can then connect to VPN servers via PPTP, OpenVPN or WireGuard protocols, allowing you to gain access to different virtual private networks. ASUSTOR NAS also supports the creation of multiple VPN connection profiles allowing you to easily switch connections between different VPN networks.

Downloading AiData

AiData is available for both Android and iOS devices. You can search for AiData in the App Store and Google Play or scan the QR codes below to download the app.



Download on the go

Imagine the convenience of downloading while on the go and then having your downloads ready as soon as you get home. With ASUSTOR's AiDownload, all this is possible and more. AiDownload is a mobile app that works with ASUSTOR's Download Center to provide you with download management on mobile. Searching, downloading, configuring and monitoring can all be done with AiDownload. Torrent* magnets also automatically add download tasks to AiDownload, making downloading easier than ever!

Your mobile device as your remote

Now your phone can become a remote control for the ASUSTOR Portal.

AiRemote allows you to control all types of functionality on the ASUSTOR Portal. From the basic up, down, left, right controls used with the ASUSTOR Portal interfaces to the play, pause, rewind, fast forward and volume controls used when playing videos, AiRemote has got you covered.

Furthermore, when using the web browser in ASUSTOR Portal, AiRemote provides a Touchpad Mode giving you intuitive control over your web browsing.

Your mobile device as your remote

Terabytes of music in the palm of your hand

AiMusic allows you to stream music from your NAS to your mobile device, letting you enjoy your entire music collection while on the go.

Ultimate data protection

ASUSTOR NAS makes use of RAID storage technology to provide protection for your data. RAID mainly revolves around the core concept of combining your disks to protect the data inside. ASUSTOR offers a number of different RAID level configurations that you can choose from when creating storage volumes. Each RAID level offers a differing degree of data protection, system performance and storage space. ASUSTOR's supported RAID levels are summarized in the chart below:

RAID LEVEL

Single

JBOD

RAID 0

RAID 1

RAID 5

RAID 6

RAID 10

Minimum number of disks

1

2

2

2

3

4

4

Faulty Disks Tolerated

x

x

x

1

1

2

1

Increased System performance

x

x

v

x

v

v

v

Maximum use of Storage space

v

v

v

x

x

x

x

Ultimate data protection

Hardware Specifications

AS6810T
CPU AMD Ryzen V3C14 Quad Core 2.3GHz up to 3.8GHz Processor
Memory 16GB ECC DDR5-4800 SO-DIMM (16GB x1, Expandable. Max 64GB)
HDD 10x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots 4
Maximum Drive Bays with Expansion Unit 22
Expansion 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A; 2 x USB 4.0 (40Gbps) Type-C
  • Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0
Network 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M); 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
HDMI Output N/A
Size 215.5(H) x 293(W) x 230(D) mm
Power Consumption 68 W (Operation);
2.4 W (Sleep Mode)

Software & Features

Operating System

  • ADM 4.1 Onwards
  • Supports Online Firmware Updates

Supported OS

  • Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
  • mac OS 10.6 Onwards
  • UNIX, Linux, and BSD

Supported Languages

  • Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar, ภาษาไทย

Supported Browsers

  • FireFox
  • Chrome
  • Safari
  • Microsoft Edge

Network Protocols

  • CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

File System

  • Internal Disk: EXT4 ,Btrfs
  • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN

  • Maximum Targets: 256
  • Maximum LUNs: 256
  • Maximum Snapshot Versions of a Single LUN: 256
  • Target Masking
  • LUN Mapping
  • ISO File Mounting
  • Supports MPIO
  • Persistent (SCSI-3) Reservations

Customized Sign In Page

  • 2 Different Template Choices
  • Customizable Title, Imageand Background
  • Image Import Function

Disk Management

  • Scheduled Bad Block Scans
  • Scheduled S.M.A.R.T Scans

Energy Control

  • Configurable Disk Hibernation and Sleep Mode Wait Time
  • Configurable Time Period for Sleep Mode Activation
  • Automatic Sleep

Network

  • TCP/IP (IPv4 & IPv6)
  • Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
  • SMB Multichannel
  • Jumbo Frame (MTU)
  • VLAN
  • EZ Connect
  • Wireless Network³
  • DDNS and EZ-RouterCompatibility
  • Supports Wake-on-LAN (WOL)
  • Supports Wake-on-WAN (WOW) See More

Backup Solutions

  • Rsync (Remote Sync) Backup
  • Cloud Backup
  • FTP Backup
  • External Backup
  • One Touch Backup
  • EZ Sync
  • MyArchive

System Administration

  • Log Type: System Log, Connection Log, File Access Log
  • Real-time Online User Monitor
  • Real-time System Monitor
  • User Quota
  • Virtual Drive (ISO Mounting, Maximum 16)
  • UPS SupportCompatibility

Network Recycle Bin

  • Share folder-based
  • Maintains original directory structure and file permission
  • On-click restore
  • Supports scheduled emptying
  • Filtering rules
    1. File size
    2. File extension
  • Deletion Settings
    1. File size
    2. File date

Access Control

  • Maximum Number of Users: 4096
  • Maximum Number of Groups: 512
  • Maximum Number of Shared Folders: 512
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • Supports Windows Active Directory / LDAP

ACL

  • Provides both Windows ACL and Linux ACL permission configuration methods
  • Can enable Windows ACL for specific shared folders
  • Comprehensive support for Windows’ 13 types of advanced permission settings
  • Can view Windows ACL permission settings from within ADM
  • Supports local users and groups
  • Exclusive permission reset function allows users to quickly restore default permissions

Security

  • AES 256-Bit Encryption
  • Firewall: Prevent Unauthorized Access
  • Alert Notifications: E-mail, SMS
  • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  • Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
  • RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

Network Defender

  • Auto black list
  • Trusted list
  • Black/White list
    • Supports IP/IP range/geolocation

External Devices Compatibility

  • Supports USB/eSATA3 External Storage Devices
  • USB Wi-Fi Dongle Support
  • Bluetooth Dongle/Speaker Support
  • USB Printer Support
  • USB DAC/IR Receiver/Keyboard/Mouse Support
  • CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

Featured Apps

Antivirus (ClamAV)

  • Scheduled Scans
  • Automatic Virus Definition Updates
  • Quarantine Infected Files

Download Center

  • Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
  • Torrent Search
  • Choose Files Before a BT Task Starts
  • Customizable Download Schedule
  • Bandwidth Control
  • RSS Subscription and Automatic Downloading (Broadcatching)
  • ASUSTOR Download Assistant for Windows & Mac
  • AiDownload for Android with Push Notification
  • Smart Download Function

Cloud Backup Center

  • Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage
  • Immediate or scheduled backup
  • Perform multiple backup tasks and back up multiple accounts
  • DataSync Center

    • Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
    • Supports file filter and bandwidth limitation
    • Supported backup methods:
      • Sync
      • Directly upload files to Cloud from NAS
      • Directly download files from Cloud to NAS

    File Explorer

    • Web-based File Management
    • ISO File Mounting
    • Share Links
    • Task Monitor
    • Browse Files on Local PC
    • Thumbnail Previews
    • Data Access via External Optical Drive
    • Supports video playback¹⁰

    FTP Explorer

    • Directory Structure View with Drag & Drop Transfers
    • Task Monitor
    • Stopping of Transmission Task & Resumption of Connection
    • Encrypted Connections: Explicit over TLS, Implicit over TLS
    • FTP Site Manager
    • Bandwidth Control
    • Maximum Simultaneous Transfer Control

    HiDrive

    • Support OneDrive and OneDrive Business
    • Each ADM Account is Able to Individually Log in to One HiDrive Account
    • Supported Backup Methods:
      • Directly Upload Files to HiDrive from NAS
      • Directly Download Files from HiDrive to NAS
    • Supported Protocols:
      • Rsync
      • FTP
      • FTPS
      • SFTP
      • Rsync + SSH

    LooksGood

    • Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
    • Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
    • Attractive poster wall and thumbnail display
    • Automatic production of video poster thumbnails
    • Centralized management and ability to configure order of favorites and playlist history
    • System administrator is able to configure video library and editing permissions according to user preferences
    • Can configure access permissions to share with friends and family
    • Multimedia conversion feature
    • Self-defined smart folder for video conversions
    • Easy Streaming with Chromecast and DLNA
    • Supports playback of videos in Apple TV via AiVideos tvOS version

    OwnTone

    • For iTunes on Mac & Windows
    • Supports AirPlay
    • Supports iOS Remote Pairing
    • Supported Audio Formats: AIF⁵, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV⁵
    • Supported Video Formats: M4V, MOV, MP4
    • Supported Playlist Formats: M3U, WPL

    Mail Server

    • Each ADM Account can Become an Independent Email Account
    • Email Activity Monitor (Over 1 Week, 1/3/6 Months)
    • Provides SMTP, IMAP and POP3 Mail Protocols
    • Supports SMTP Relay and Verification
    • SMTP-SSL Secure Connections
    • Spam Filter and Black List Settings
    • Antivirus Scanning for Emails
    • Email Alias Creation and Mapping
    • Monitoring of Mail Queue
    • Mail Service Activity Log
    • Exclusive Email Backup Mechanism
    • Auto-Forwarding and Auto-Response Protocols

    Photo Gallery 3

    • Quickly find and view photos from a specific date in Photo Gallery 3’s timeline.
    • Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates.
    • Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
    • Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
    • Easily find photos by keyword search.

    VPN Server

    • Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
    • View Current Connections & Ability to Disconnect Suspicious Connections
    • Comprehensive Connection Log

    SNMP Server

    • Supports SNMP v1, v2c, v3 and trap
    • ASUSTOR NAS MIB provided

    Syslog server

    • Supports standard syslog protocol
    • Graphical log monitoring by time and device
    • Supports TCP and UDP
    • Auto log archiving
    • User-defined email notification

    Surveillance Center

    • Up to 72 channels in 720p on single live view display
    • On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
    • Up to 4 channels of synchronous and non-synchronous playback with audio
    • Intelligent video analytics including motion detection and foreign object detection
    • Supported Browsers: Microsoft Edge, Firefox, Chrome
    • Event notification supports SMS, E-mail, and mobile push notification
    • Automated event action rules
    • Role-based access control
    • RTSP streaming server (video and audio)
    • AiSecure mobile app for iOS and Android with Push notification
    • ONVIF Profile S, T supported
    • CMS Lite supports connect up to 256 IP Cameras from 32 NAS
    • Two different camera license packages are offered: single channel and 4 channels.
    • Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
    Series Maximum IP cam
    AS71 100
    AS68 72
    FS68 72
    AS7 64
    AS65 64
    FS67 44
    AS67 44
    AS66 40
    AS63/64 36
    AS61/62 36
    AS54 44
    AS52/53 36
    AS50/51 30
    AS33/33 V2 25
    AS31/32 25
    AS40 16
    AS-6 16
    AS11/AS11TL 12
    AS-2TE/AS-3 8
    AS-2T 8
    AS10 8
    • Minimum PC Client Requirements
      • CPU: Intel i5/i7 or above
      • RAM: DDR3 4G or above
      • Operating system Windows 7 and onward
      • Windows browsers: Microsoft Edge, Chrome, Firefox
      • Display resolution: 1280x800 pixels or higher for best user experience
      • Network interface: Gigabit x1
      • Independent graphics card is highly recommend

    SoundsGood

    • Import Personal/Public Music Collection
    • Personal/Public Music Collection Permission Control
    • Playlist Editor
    • ID3 Tag Editor
    • Local Speaker Support: USB
    • Supported Audio Formats for Browser: MP3, WAV, Ogg
    • Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
    • Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
    • ASUS DAC Support

    Takeasy

    • Download from YouTube, Vimeo, Twitch and More
    • Selectable Video Type and Quality
    • Automatic Downloads with Twitch Subscriptions
    • Preview Downloads in Progress
    • Online Playback

    UPnP Media Server

    • Supports PS3 and other Digital Media Player Capable Devices
    • Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
    • Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

    VPN Client

    • Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec
    • Transmission Package Monitor
    • PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
    • PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
    • OpenVPN Port Control
    • OpenVPN Link Compression

    Note:

    1. Metadata (e.g. title) may not be able to displayed in iTunes.
    2. You must first enable real time transcoding for these files in order to play them.
