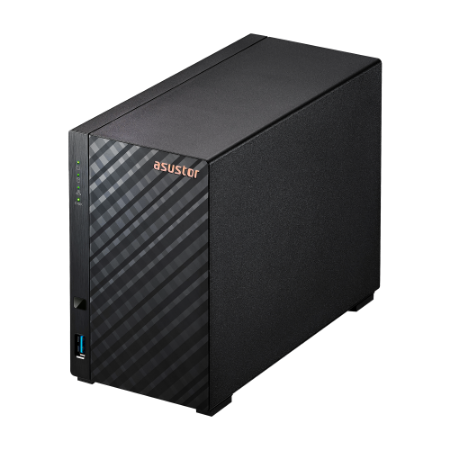

AS1102TL |
|
|
All-New Realtek RTD1619B Quad-Core Processor at 1.7 GHz Gigabit Ethernet Upgraded powerful internal display, smooth transcoding of 4K videos Btrfs/iSCSI Snapshots Supports Wake on LAN |
CPU and iGPU UpgradesThe Drivestor 2 Lite contains a 1.7 GHz CPU, which is faster than the 1.4 GHz found in the first generation of Drivestor NAS devices. The upgraded CPU also contains an upgraded iGPU that provides significant upgrades in transcoding features and performance, making the Drivestor 2 Lite the best price-performance NAS. |
1GB DDR4 RAMThe Drivestor 2 Lite handles multitasking with ease by utilizing its 1 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly. |
Easily Get Started with ASUSTORThe all-new navigation page helps make controlling your NAS and data even easier. A user friendly UI incentivizes becoming familiar with the numerous features an ASUSTOR NAS provides to ensure better data security. |
Efficient and PowerfulTranscode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood. |
Share and Share Alike!Share links can create hyperlinks to share with other people to upload and download files to and from an ASUSTOR NAS. While share links come with multiple customizable options to increase convenience or security, people that use a share link are not required to have an account to upload and download files on the share link, making it more convenient for project collaboration or organizing travel photos. |
Btrfs for ARM is Here!The Drivestor 2 Lite is the first ARM NAS by ASUSTOR to support Btrfs. Use your Drivestor 2 Lite to create Btrfs snapshots in Snapshot Center for extra data protection. Snapshot Center supports scheduling or manual creation of snapshots, making it easier to restore files after unintentional modifications. Snapshots can be used to respond to ransomware threats in real time and help effectively protect data integrity. |
Protected From the Inside and OutProtect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus and ADM’s various backup tools help protect ransomware even better.
Network Attack Protection
Secure Data Transmission
Internal Data
Access Control
|
Toolless installationThe sliding cover design found on the Drivestor makes opening your NAS easy. The inner hard drive rails and outer cover all use thumb screws making hard drive installation simple and easy without tools. |
Protected From RansomwareThe ASUSTOR NAS comes with the most up-to-date version of ADM to help protect against ransomware attacks. Snapshot Center provides the ability to efficiently create snapshots to protect and easily restore lost data from iSCSI volumes. Other security features found on the ASUSTOR NAS are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features blacklists and whitelists, the ability to change default ports, disable SSH and Terminal to prevent remote attacks. |
DataSync CenterDataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected. |
Cloud Backup CenterCloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected. |
Create the Ultimate Home Multimedia CenterEnjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices. SoundsGood
|
Web CenterEasily set up a website with Web Center. Install Apache or Nginx or almost any other web server implementation and add multiple website portals for an easy-to-use web server experience. |
Photo Gallery 3 + AiFoto 3The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience. |
Dr. ASUSTORASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks. |
Mobile AppsASUSTOR’s exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security. |
App CentralUnleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself. |
First-Class Product WarrantyAll ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support. |
A movie theater in the palm of your hand |
|
AiVideos brings you the smoothest mobile video viewing experience from NAS. Browse through the video collection on your NAS without needing to wait for long downloads from the Internet. Enjoy high-definition video streaming with just one click. AiVideos also supports multilingual subtitles and different audio channels to make enjoying films in different languages easy. Use AiVideos to bring the theater to your phone, tablet and set top box. |
Download on the go |
|
Imagine the convenience of downloading while on the go and then having your downloads ready as soon as you get home. With ASUSTOR's AiDownload, all this is possible and more. AiDownload is a mobile app that works with ASUSTOR's Download Center to provide you with download management on mobile. Searching, downloading, configuring and monitoring can all be done with AiDownload. Torrent* magnets also automatically add download tasks to AiDownload, making downloading easier than ever! |
Your mobile device as your remote |
|
Now your phone can become a remote control for the ASUSTOR Portal. AiRemote allows you to control all types of functionality on the ASUSTOR Portal. From the basic up, down, left, right controls used with the ASUSTOR Portal interfaces to the play, pause, rewind, fast forward and volume controls used when playing videos, AiRemote has got you covered. Furthermore, when using the web browser in ASUSTOR Portal, AiRemote provides a Touchpad Mode giving you intuitive control over your web browsing. |
Terabytes of music in the palm of your hand |
|
AiMusic allows you to stream music from your NAS to your mobile device, letting you enjoy your entire music collection while on the go. |
A variety of listening experiences |
|
Play music from playlists that you create yourself for an optimal listening experience. Like listening to random songs? AiMusic's Random songs play mode is your best friend! You need only select it once to create a random playlist from your entire music collection, allowing you to enjoy a new listening experience each and every time. |
Listen to your favorite songs while offline |
|
AiMusic also allows you to download songs from your NAS to your mobile device for offline listening. No matter if it is is a single song, an album or an entire playlist, all can be easily downloaded to your mobile device for convenient listening. |
External Optical Drive Support |
|
After connecting an external optical drive (CD, DVD, Blu-ray) to your NAS via USB, you can use File Explorer to directly access any files that you have backed up to optical media and even transfer files from your optical media to your NAS via drag and drop for future access.
Note:
|
A cost-effective and efficient mail service solution |
|
The ability to send and receive email is fundamental to all businesses. However, expensive implementation costs and complicated management create barriers for most small and medium sized businesses. ASUSTOR’s Mail Server offers a comprehensive and cost-effective solution that allows any business to easily maintain their own dedicated mail server. |
Your Data at your Fingertips |
|
In addition to browsing files in an ASUSTOR NAS with a web browser, shared folders are directly accessible on your phone or tablet through AiData. Mounted CIFS folders, USB external devices, MyArchive hard drives and EZ Sync synchronization data are all supported and can be easily accessed, moved or copied from within AiData. |
Easy File Management |
|
AiData provides a variety of file management features. AiData supports downloading and uploading files for backups. When browsing a large amount of data on the NAS, AiData supports both grid and list views to display, sort and manage files for better organization. |
Downloading AiData |
|
AiData is available for both Android and iOS devices. You can search for AiData in the App Store and Google Play or scan the QR codes below to download the app. |
Offline Playback |
|
Use your wireless network to download videos on your NAS to your phone or tablet with AiVideos. AiVideos supports offline video playback for enjoyment of movies when away from the house without using mobile data that may have bandwidth limits or poor reception. |
Keep an eye on it |
|
Worried about leaving your home unattended? Keep an eye on the most important things with Surveillance Center. Surveillance Center's fully optimized interface allows you to simultaneously view live feeds from up to 4 IP cameras, take snapshots and control the pan tilt and zoom functions of all cameras giving you complete peace of mind. |
Stay Connected to Everything You Care About with AiSecure |
|
AiSecure allows you to easily keep an eye on everything that is happening at home. In addition to monitoring live views of particular locations, AiSecure also features instant push notifications that can be sent to your mobile device when specified events occur, allowing you to grasp all the latest developments in the palm of your hand. |
Simple to Set Up |
|
AiSecure dramatically simplifies the connection process to your surveillance feeds.* After enabling Cloud Connect on your NAS, you will be able to use your dedicated Cloud ID to connect to Surveillance Center, allowing you to easily monitor all the important things in your life from any corner of the world.
*AiSecure provides 3 different connection methods:
1. Connecting via Cloud ID. 2. Connecting via Auto Discovery to ASUSTOR devices on the same network. 3. Connecting via IP/Hostname. |
iSCSI LUN Snapshots
|
|
ASUSTOR’s snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups. Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service. |
Effectively simplifying network management |
|
Syslog Server supports standard Syslog protocols and can centrally aggregate system logs that are spread out over various network devices for storage and management. Furthermore, Syslog Server integrates with the NAS’s Instant Notification function, allowing administrators to receive e-mails or SMS notifications when specified events occur, in order to quickly employ appropriate measures. |
Easily Set Up Your NAS |
|
AiMaster enables you to initialize and activate your NAS immediately through your phone or tablet. Easily monitor your ASUSTOR NAS, add users, download and install apps, update ADM and adjust ADM settings, making the new AiMaster easier than ever. |
All-New Login Page |
|
The all-new login page can share login information between other installed ASUSTOR mobile apps, eliminating the need to enter login info multiple times. NAS devices that support Wake on LAN or WAN can directly be woken up by AiMaster. |
Easily Set Up ADM |
|
AiMaster is an app for phones and tablets for controlling and adjusting ADM settings. |
Your own FTP server |
|
FTP is one of the most widely used and popular transfer protocols in the world. Every ASUSTOR NAS has a built-in FTP server feature that allows you to create a personal FTP server in just a matter of seconds. Hosting your own FTP server will instantly give you the power to share and exchange files over the internet. |
Regular backups of your vital data |
|
ASUSTOR's built-in RAID storage technology can provide a certain level of data protection, but regularly backing up the data on your NAS is also very important.
|
The ultimate tool for remote backup |
|
Rsync is an application originally developed for UNIX that is usually used for backup and sync between two computers. By providing block level replication, Rsync is able to offer incremental backup. Incremental backup allows for successive backup jobs (after your first backup job) to only copy data that has changed since your last backup job. Rsync is suitable for use with files and data that are always changing. It lets you cut down on backup time while significantly reducing bandwidth usage. |
A rich and flexible backup solution |
|
ASUSTOR's Rsync Backup function supports two-way data transfers, incremental backup, encrypted backup and also the scheduling of your NAS to perform regular backup jobs. It effectively simplifies data backup while also substantially reducing the burden on IT staff. ASUSTOR's Rsync backup function may be used to complete tasks such as:
|
Mission Mode |
|
Never again worry about your critical backup jobs stopping or failing to complete because your ASUSTOR NAS won't stop until it's 'mission complete'. Sometimes backup jobs may be stopped because of various connection problems with a busy server on the other end. For Rsync, FTP, external and cloud backups, ASUSTOR's Mission Mode allows you to configure the number of connection attempts and time interval for connection attempts, ensuring for the successful completion of your backup mission. This also gives IT administrators a significant amount of flexibility when configuring backup jobs. |
Set and forget |
|
ASUSTOR's Backup Plan software for Windows provides you with worry-free backup. Simply schedule a regular backup job of your PC to your NAS, then let Backup Plan take care of the rest. Backup Plan will work in the background to ensure that your PC is always backed up. |
Real time synchronization |
|
Any data that is lost between scheduled backups is unprotected. Backup Plan lets you configure real time file synchronization for those important and ever-changing file folders. Any changes that you make to your protected files and folder will be updated in real time. Now you can rest assured knowing that your critical files are always protected and up to date. |
Unleash unlimited potential |
|
The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. App Central allows you to explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself. |
Optimized for your Mac |
|
Mac lovers rejoice! You can use your Mac's built-in backup, Time Machine, to easily back up your Mac to an ASUSTOR NAS. All ASUSTOR NAS devices have been optimized for use with Time Machine, providing Mac lovers with a familiar and easy to use backup solution. |
Multi-user support |
|
Different Mac users can now safely backup their computers to the same NAS device. Unlike other NAS devices, ASUSTOR NAS does not just use one group account to carry out backup jobs for all Mac users, storing all their jobs under the same directory. With ASUSTOR NAS each Mac user is able to use an independent account and backup location thereby guaranteeing privacy for all. |
No more waste |
|
Still wasting money and time burning CDs or DVDs every time you need to install some software? ASUSTOR NAS supports the mounting of ISO files which provides you with a cost effective and environmentally friendly solution that effectively lowers CD and DVD waste. |
Ultimate data protection |
|||||||||||||||||||||||||||||||||||||||||
ASUSTOR NAS makes use of RAID storage technology to provide protection for your data. RAID mainly revolves around the core concept of combining your disks to protect the data inside. ASUSTOR offers a number of different RAID level configurations that you can choose from when creating storage volumes. Each RAID level offers a differing degree of data protection, system performance and storage space.
|
As Much Space as Needed! |
|
Your ASUSTOR NAS supports capacity expansion. This means that you can easily swap out all old hard drives or SSDs for higher capacity ones without deleting the volume and increases the storage capacity of your NAS with lots of convenience with little to no downtime.
|
Uninterrupted Access |
|
When expanding capacity, you will still be able to access everything stored on the NAS. Volume capacity expansion does not require advanced IT skills to execute and as long as installed drives are in working order, keeps your data intact. When it's time to upgrade, ADM gets it done. |
Military Grade Encryption |
|
Your most important data deserves the best security. ASUSTOR NAS offers folder based military grade AES 256bit encryption, giving you the type of security and privacy that you require for your most confidential data. All data stored in encrypted folders will be automatically encrypted and secured to the highest of standards. Should you ever lose your NAS or hard disks, you still needn't worry about your sensitive data falling into the wrong hands. |
Folder-based efficiency |
|
Unlike other NAS devices, ASUSTOR NAS gives you the flexibility to select the individual folders that you want to encrypt. Other NAS devices encrypt entire storage volumes which significantly slows down the system. Any encrypted portions of storage volumes will be subject to a decrease in performance. However, with ASUSTOR NAS you are free to encrypt only your most confidential data while leaving other data unencrypted, creating a perfect balance between performance and security. |
Firewall |
|
Use ADM Defender's firewall to control access to your NAS. Ensure the security of your system by deciding who has access to your NAS and who doesn't. |
Network Defender |
|
ADM Defender's Network Defender function protects you from malicious attacks and prevents hackers from trying to access your NAS. Any client IP addresses with too many unsuccessful login attempts to your NAS within a specified time period will be blocked by Network Defender. |
The best things in life are free |
|
ASUSTOR's Surveillance Center comes with 4 license free channels letting you to setup 4 different network IP cameras. This significantly lowers startup costs for your surveillance system. No matter if you prefer to use Microsoft Edge, Mozilla Firefox or Google Chrome, Surveillance Center's easy-to-use browser based interface and quick start wizard will allow you to create a security surveillance system in a snap. |
Secure connections |
|
ASUSTOR NAS supports VPN connections giving you secure access and flexible deployment options. Your NAS is able to act as a VPN client which can then connect to VPN servers via PPTP, OpenVPN or WireGuard protocols, allowing you to gain access to different virtual private networks. ASUSTOR NAS also supports the creation of multiple VPN connection profiles allowing you to easily switch connections between different VPN networks. |
Enhanced Recycle Bin mechanism |
|
The Network Recycle Bin mechanism has been updated in ADM and is now based on individual shared folders rather than storage volumes. According to their needs, users can decide whether or not to enable a Network Recycle Bin for each individual shared folder, enjoying added configuration flexibility. |
AS1102TL | ||
---|---|---|
CPU | Realtek RTD1619B 1.7GHz (Quad-Core) Processor |
|
Memory | 1 GB (not expandable) | |
HDD | 2x SATA3 6Gb/s; 3.5" HDD | |
Maximum Drive Bays with Expansion Unit | 6 | |
Expansion | 1x USB 3.2 Gen 1; 1 x USB 2.0 | |
Network | 1x Gigabit Ethernet (1G/100M) | |
HDMI Output | N/A | |
Size | 165(H) x 102(W) x 218(D) mm | |
Power Consumption | 11.7W (Operation) 3.1W (Disk Hibernation); |
Software & Features |
||
Operating System
Supported OS
Supported Languages
Supported Browsers
Network Protocols
File System
|
iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN
Customized Sign In Page
Disk Management
Energy Control
Network
Backup Solutions
System Administration
|
Network Recycle Bin
Access Control
ACL
Security
Network Defender
External Devices Compatibility
|
Featured Apps |
||||||||||||||||||||||||||||||||||||||||||||||
Antivirus (ClamAV)
Download Center
Cloud Backup CenterDataSync Center
File Explorer
FTP Explorer
|
HiDrive
LooksGood
OwnTone
Mail Server
Photo Gallery 3
VPN Server
|
SNMP Server
Syslog server
Surveillance Center
SoundsGood
Takeasy
UPnP Media Server
VPN Client
|
