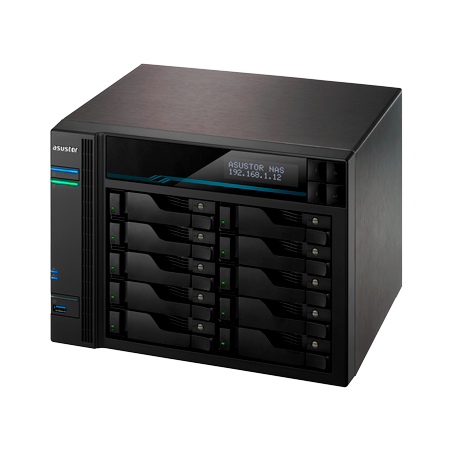

AS6510T

  • Intel Denverton-based Atom C3538 Quad-Core CPU
  • 8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
  • Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
  • Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
  • Supports 10x 3½" SATA hard drives and SSDs
  • Dual M.2 NVMe SSD ports for fast caching
  • Supports an extra capacity with the AS6004U
  • Thumbscrews for easy M.2 SSD installation
  • Supports Wake on LAN and Wake on WAN
  • Efficient cooling design
  • Best in class three year warranty
ASUSTOR Storage with Adobe Creative Cloud

Smallest Enterprise Intel 10-Gigabit NAS.

All new front panel design.

Dual 10 and 2.5 Gigabit ports. Faster than ever.

The all new Lockerstor series of NAS feature dual Intel 10-Gigabit Ethernet ports as well as dual Realtek 2.5-Gigabit Ethernet ports. With a managed switch that supports multiple speeds, take advantage of up to 20 gbps of speed with both 10-Gigabit ports or up to 5 gbps on both 2.5-Gigabit ports.

*Two Cat 6a and two Cat 5e cables included in box.

Dual 10 and 2.5 Gigabit ports. Faster than ever.

SSD Cache

The recently updated ADM features an updated Linux Kernel and additional performance enhancements. The Lockerstor series introduce M.2 PCIe NVMe SSD caching increasing performance.

1. Lockerstor NVMe SSD caching increases performance by up to 60%.
2. Lockerstor NVMe SSD caching is faster than if all bays were filled with SATA SSDs while remaining cheaper.

With dual 10-Gigabit Ethernet, bottlenecks on NVMe SSDs have been lifted, making the Lockerstor one of the fastest NAS devices ever.

SSD Cache

Thumbscrews for easy M.2 SSD installation

Regular screws are difficult to handle
Thumbscrews are easier to manipulate
Two M.2 2280, 2260 or 2242 slots supporting NVMe and AHCI SSDs

Ten Bay with M.2 SSD Cache flexible storage

The AS6510T is a cost-effective large capacity NAS designed for enterprise environments.The AS6510T supports online capacity expansion, allowing for the flexible purchase of enterprise storage equipment. When your budget and storage requirements are smaller, you can purchase a smaller number of hard disks. Additional disks can be purchased as your storage requirements grow. Combined with ASUSTOR’s MyArchive storage technology, this allows you to effectively achieve unlimited storage.

Ten Bay with M.2 SSD Cache flexible storage

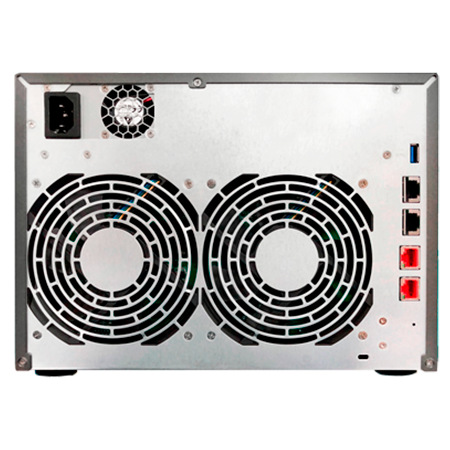

Powerful and high efficient cooling design

The Lockerstor utilizes PWM fans with smart speed controls and heatsinks with push-pin mounting to achieve optimal airflow, enhancing stability and maintaining high performance even under high loads.
The Lockerstor’s improved design features improved heatsinks that are taller than previous models to ensure even more efficient cooling and heat dissipation.

Powerful and high efficient cooling  design

Easily upgrade memory by opening the chassis.

The Lockerstor comes with 8 Gigabytes of DDR4 RAM and can be upgraded up to 64GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.

AS6508T
AS6508T

24/7 Reliability and Durability

All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.


24/7 Reliability and Durability

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Network Attack Protection
  • Firewall
  • ADM Defender
  • Cloud Backup Center offsite backups
Secure Data Transmission
  • VPN connection
  • SSL certificate connection
  • Automatic logout
Internal Data
  • MyArchive on and offsite backups
  • AES-256 folder encryption
  • Antivirus software
Access Control
  • File/folder/app isolation
  • 2-Step Verification
  • Wake-on-LAN (WOL)
  • Wake-on-WAN (WAN)
*MyArchive not applicable: AS10, AS11(Drivestor)

Protected From the Inside and Out

Wake Up From Anywhere

The Lockerstor 8 and 10 feature Wake on WAN technology. No specialized equipment or settings are needed to wake the NAS. Simply use ASUSTOR’s wide variety of mobile apps, including but not limited to AiMaster, AiMusic, AiVideos and AiData to turn the NAS on or off remotely. Wake on WAN helps protect data by keeping the NAS powered off when not in use; thereby helping to prevent attacks, protects data integrity by remaining powered off during power failures and Wake on WAN also saves electricity, making for an even more efficient NAS.

Wake Up From Anywhere

Use mobile apps like AiMaster to power the NAS on or off.

Helps prevent attacks and protect data.
Power outage management
Saves electricity

ASUSTOR is honoured to sponsor Florian's devotion to environmental protection.

Protected From Ransomware

Protected From Ransomware

The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. With Snapshot Center and Btrfs providing efficient snapshots to easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features black and white lists and the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.

Comprehensive Backup Solutions

ASUSTOR’s comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and OneDrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provide easy backups for desktop and laptops while MyArchive removable hard drives provide long term storage. Btrfs is now supported and with Snapshot Center, can take snapshots of your information in the event of unintentional modification. Restore previous versions easily with Snapshot Center.

Comprehensive Backup Solutions

Cross-Platform Multi-User Access

The ASUSTOR NAS provides seamless cross-platform and multi-user access, allowing you to easily connect to your NAS from Windows, macOS or Unix-like operating systems no matter if you are using a PC, notebook, tablet or smartphone.

4096


Accounts

512


Groups

512


Shared Folders

512


Concurrent Connections

Snapshot Center

Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.

Snapshot Center
ASUSTOR EZ Sync

ASUSTOR EZ Sync

ASUSTOR EZ Sync

  1. All new UI. Simpler and easier to operate. View NAS information quickly.
  2. More complete settings - offering detailed folder lists. Easily select folders and files not in a folder.
  3. Notifications for abnormal status
  4. Support 2-step verification increase account safety.
  5. Improve NAS connecting and file sync system stability for better user experience.

File Editing and Project Collaboration

Nextcloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.

File Editing and Project Collaboration

Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Exclusive MyArchive Cold Backup Technology<br/>Unlimited Capacity Expansion

Virtual Applications with Virtualbox

Deploy all kinds of operating systems to your NAS.
ADM 3.5 brings a newer Linux Kernel, providing better system security and stability.

Virtual Applications with Virtualbox

Software
Portainer – Easy Docker Deployments

Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

<span class='red_border'>Software
</span><br/>

Portainer – Easy Docker Deployments

ASUSTOR Live

Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn’t require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.

ASUSTOR Live

Enterprise Versatility

ASUSTOR NAS offers rich variety of services for business users. For the price of one NAS you can create a multifunctional server that is worth much more.

Enterprise Versatility

App Central

Unleash the unlimited potential of an ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or digital home entertainment, App Central has you covered. With over 200 unique apps, App Central provides you with a virtually boundless variety of applications that to satisfy your digital lifestyle needs. Explore the virtually unlimited potential of your ASUSTOR NAS while creating a personalized experience for yourself.

App Central

Mobile Apps

ASUSTOR’s exclusive EZ-Connect technology allows you to connect to your NAS from anywhere with your Android or iOS device to securely access, download, upload and share files and information. ASUSTOR mobile apps securely protect your privacy and data by requiring passwords in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

Mobile Apps
First-Class Product Warranty

First-Class Product Warranty

All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

A movie theater in the palm of your hand

AiVideos brings you the smoothest mobile video viewing experience from NAS. Browse through the video collection on your NAS without needing to wait for long downloads from the Internet. Enjoy high-definition video streaming with just one click. AiVideos also supports multilingual subtitles and different audio channels to make enjoying films in different languages easy. Use AiVideos to bring the theater to your phone, tablet and set top box.

Download on the go

Imagine the convenience of downloading while on the go and then having your downloads ready as soon as you get home. With ASUSTOR's AiDownload, all this is possible and more. AiDownload is a mobile app that works with ASUSTOR's Download Center to provide you with download management on mobile. Searching, downloading, configuring and monitoring can all be done with AiDownload. Torrent* magnets also automatically add download tasks to AiDownload, making downloading easier than ever!

Download on the go

Your mobile device as your remote

Now your phone can become a remote control for the ASUSTOR Portal.

AiRemote allows you to control all types of functionality on the ASUSTOR Portal. From the basic up, down, left, right controls used with the ASUSTOR Portal interfaces to the play, pause, rewind, fast forward and volume controls used when playing videos, AiRemote has got you covered.

Furthermore, when using the web browser in ASUSTOR Portal, AiRemote provides a Touchpad Mode giving you intuitive control over your web browsing.

Terabytes of music in the palm of your hand

AiMusic allows you to stream music from your NAS to your mobile device, letting you enjoy your entire music collection while on the go.

Terabytes of music in the palm of your hand

A variety of listening experiences

Play music from playlists that you create yourself for an optimal listening experience. Like listening to random songs? AiMusic's Random songs play mode is your best friend! You need only select it once to create a random playlist from your entire music collection, allowing you to enjoy a new listening experience each and every time.

Listen to your favorite songs while offline

AiMusic also allows you to download songs from your NAS to your mobile device for offline listening. No matter if it is is a single song, an album or an entire playlist, all can be easily downloaded to your mobile device for convenient listening.

Listen to your favorite songs while offline

External Optical Drive Support

After connecting an external optical drive (CD, DVD, Blu-ray) to your NAS via USB, you can use File Explorer to directly access any files that you have backed up to optical media and even transfer files from your optical media to your NAS via drag and drop for future access.

Note:
  1. This function only provides data access and does not support the audio and video playback of optical media.
  2. Certain optical drives will require additional power in order to operate properly. If you find that your optical drive is not spinning or reading correctly, please use a USB Y-cable to add additional power.

A cost-effective and efficient mail service solution

The ability to send and receive email is fundamental to all businesses. However, expensive implementation costs and complicated management create barriers for most small and medium sized businesses. ASUSTOR’s Mail Server offers a comprehensive and cost-effective solution that allows any business to easily maintain their own dedicated mail server.

A cost-effective and efficient mail service solution

Your Data at your Fingertips

In addition to browsing files in an ASUSTOR NAS with a web browser, shared folders are directly accessible on your phone or tablet through AiData. Mounted CIFS folders, USB external devices, MyArchive hard drives and EZ Sync synchronization data are all supported and can be easily accessed, moved or copied from within AiData.

Easy File Management

AiData provides a variety of file management features. AiData supports downloading and uploading files for backups. When browsing a large amount of data on the NAS, AiData supports both grid and list views to display, sort and manage files for better organization.

Easy File Management

Downloading AiData

AiData is available for both Android and iOS devices. You can search for AiData in the App Store and Google Play or scan the QR codes below to download the app.



Offline Playback

Use your wireless network to download videos on your NAS to your phone or tablet with AiVideos. AiVideos supports offline video playback for enjoyment of movies when away from the house without using mobile data that may have bandwidth limits or poor reception.

Offline Playback

Keep an eye on it

Worried about leaving your home unattended? Keep an eye on the most important things with Surveillance Center. Surveillance Center's fully optimized interface allows you to simultaneously view live feeds from up to 4 IP cameras, take snapshots and control the pan tilt and zoom functions of all cameras giving you complete peace of mind.

Stay Connected to Everything You Care About with AiSecure

AiSecure allows you to easily keep an eye on everything that is happening at home. In addition to monitoring live views of particular locations, AiSecure also features instant push notifications that can be sent to your mobile device when specified events occur, allowing you to grasp all the latest developments in the palm of your hand.

Stay Connected to Everything You Care About with AiSecure

Simple to Set Up

AiSecure dramatically simplifies the connection process to your surveillance feeds.* After enabling Cloud Connect on your NAS, you will be able to use your dedicated Cloud ID to connect to Surveillance Center, allowing you to easily monitor all the important things in your life from any corner of the world.

*AiSecure provides 3 different connection methods:
1. Connecting via Cloud ID.
2. Connecting via Auto Discovery to ASUSTOR devices on the same network.
3. Connecting via IP/Hostname.

iSCSI LUN Snapshots
Stable, fast and capacity-saving

ASUSTOR’s snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups. Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service.

iSCSI LUN Snapshots<br/>Stable, fast and capacity-saving

Effectively simplifying network management

Syslog Server supports standard Syslog protocols and can centrally aggregate system logs that are spread out over various network devices for storage and management. Furthermore, Syslog Server integrates with the NAS’s Instant Notification function, allowing administrators to receive e-mails or SMS notifications when specified events occur, in order to quickly employ appropriate measures.

Easily Set Up Your NAS

AiMaster enables you to initialize and activate your NAS immediately through your phone or tablet. Easily monitor your ASUSTOR NAS, add users, download and install apps, update ADM and adjust ADM settings, making the new AiMaster easier than ever.

Easily Set Up Your NAS

All-New Login Page

The all-new login page can share login information between other installed ASUSTOR mobile apps, eliminating the need to enter login info multiple times. NAS devices that support Wake on LAN or WAN can directly be woken up by AiMaster.

Easily Set Up ADM

AiMaster is an app for phones and tablets for controlling and adjusting ADM settings.

Easily Set Up ADM

Your own FTP server

FTP is one of the most widely used and popular transfer protocols in the world. Every ASUSTOR NAS has a built-in FTP server feature that allows you to create a personal FTP server in just a matter of seconds. Hosting your own FTP server will instantly give you the power to share and exchange files over the internet.

Regular backups of your vital data

ASUSTOR's built-in RAID storage technology can provide a certain level of data protection, but regularly backing up the data on your NAS is also very important.

The External backup function supports two-way data transfers, incremental backups and also the scheduling of your NAS to perform regular backup jobs. It may be used to complete tasks such as:

  • The transfer or backup of the data from your NAS to an external device.
  • Initializing the copying of data from an external device to your NAS

Regular backups of your vital data

The ultimate tool for remote backup

Rsync is an application originally developed for UNIX that is usually used for backup and sync between two computers. By providing block level replication, Rsync is able to offer incremental backup. Incremental backup allows for successive backup jobs (after your first backup job) to only copy data that has changed since your last backup job. Rsync is suitable for use with files and data that are always changing. It lets you cut down on backup time while significantly reducing bandwidth usage.

A rich and flexible backup solution

ASUSTOR's Rsync Backup function supports two-way data transfers, incremental backup, encrypted backup and also the scheduling of your NAS to perform regular backup jobs. It effectively simplifies data backup while also substantially reducing the burden on IT staff. ASUSTOR's Rsync backup function may be used to complete tasks such as:
  • The transfer or backup of data from your NAS to an Rsync compatible server
  • Initiating downloads of the data from an Rsync compatible server to your NAS

A rich and flexible backup solution

Mission Mode

Never again worry about your critical backup jobs stopping or failing to complete because your ASUSTOR NAS won't stop until it's 'mission complete'. Sometimes backup jobs may be stopped because of various connection problems with a busy server on the other end. For Rsync, FTP, external and cloud backups, ASUSTOR's Mission Mode allows you to configure the number of connection attempts and time interval for connection attempts, ensuring for the successful completion of your backup mission. This also gives IT administrators a significant amount of flexibility when configuring backup jobs.

Set and forget

ASUSTOR's Backup Plan software for Windows provides you with worry-free backup. Simply schedule a regular backup job of your PC to your NAS, then let Backup Plan take care of the rest. Backup Plan will work in the background to ensure that your PC is always backed up.

Set and forget

Real time synchronization

Any data that is lost between scheduled backups is unprotected. Backup Plan lets you configure real time file synchronization for those important and ever-changing file folders. Any changes that you make to your protected files and folder will be updated in real time. Now you can rest assured knowing that your critical files are always protected and up to date.

Unleash unlimited potential

The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. App Central allows you to explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

Unleash unlimited potential

Optimized for your Mac

Mac lovers rejoice! You can use your Mac's built-in backup, Time Machine, to easily back up your Mac to an ASUSTOR NAS. All ASUSTOR NAS devices have been optimized for use with Time Machine, providing Mac lovers with a familiar and easy to use backup solution.

Multi-user support

Different Mac users can now safely backup their computers to the same NAS device. Unlike other NAS devices, ASUSTOR NAS does not just use one group account to carry out backup jobs for all Mac users, storing all their jobs under the same directory. With ASUSTOR NAS each Mac user is able to use an independent account and backup location thereby guaranteeing privacy for all.

Multi-user support

No more waste

Still wasting money and time burning CDs or DVDs every time you need to install some software? ASUSTOR NAS supports the mounting of ISO files which provides you with a cost effective and environmentally friendly solution that effectively lowers CD and DVD waste.

Ultimate data protection

ASUSTOR NAS makes use of RAID storage technology to provide protection for your data. RAID mainly revolves around the core concept of combining your disks to protect the data inside. ASUSTOR offers a number of different RAID level configurations that you can choose from when creating storage volumes. Each RAID level offers a differing degree of data protection, system performance and storage space.
ASUSTOR's supported RAID levels are summarized in the chart below:

RAID LEVEL

Single

JBOD

RAID 0

RAID 1

RAID 5

RAID 6

RAID 10

Minimum number of disks

1

2

2

2

3

4

4

Faulty Disks Tolerated

x

x

x

1

1

2

1

Increased System performance

x

x

v

x

v

v

v

Maximum use of Storage space

v

v

v

x

x

x

x

As Much Space as Needed!

Your ASUSTOR NAS supports capacity expansion. This means that you can easily swap out all old hard drives or SSDs for higher capacity ones without deleting the volume and increases the storage capacity of your NAS with lots of convenience with little to no downtime.


  • Only supported on RAID 1, RAID 5, RAID 6 and RAID 10 volumes.
  • If replacing M.2 SSDs or hard drives without hot-swap functionality, your NAS will need to be powered down before removing drives.
  • Hard drives or M.2 SSD can only be replaced one at a time. Attempts to replace multiple drives simultaneously or while the NAS is synchronizing will cause data loss.

Uninterrupted Access

When expanding capacity, you will still be able to access everything stored on the NAS. Volume capacity expansion does not require advanced IT skills to execute and as long as installed drives are in working order, keeps your data intact. When it's time to upgrade, ADM gets it done.

Uninterrupted Access

Military Grade Encryption

Your most important data deserves the best security. ASUSTOR NAS offers folder based military grade AES 256bit encryption, giving you the type of security and privacy that you require for your most confidential data. All data stored in encrypted folders will be automatically encrypted and secured to the highest of standards. Should you ever lose your NAS or hard disks, you still needn't worry about your sensitive data falling into the wrong hands.

Folder-based efficiency

Unlike other NAS devices, ASUSTOR NAS gives you the flexibility to select the individual folders that you want to encrypt. Other NAS devices encrypt entire storage volumes which significantly slows down the system. Any encrypted portions of storage volumes will be subject to a decrease in performance. However, with ASUSTOR NAS you are free to encrypt only your most confidential data while leaving other data unencrypted, creating a perfect balance between performance and security.

Folder-based efficiency

Firewall

Use ADM Defender's firewall to control access to your NAS. Ensure the security of your system by deciding who has access to your NAS and who doesn't.

Network Defender

ADM Defender's Network Defender function protects you from malicious attacks and prevents hackers from trying to access your NAS. Any client IP addresses with too many unsuccessful login attempts to your NAS within a specified time period will be blocked by Network Defender.

Network Defender

The best things in life are free

ASUSTOR's Surveillance Center comes with 4 license free channels letting you to setup 4 different network IP cameras. This significantly lowers startup costs for your surveillance system. No matter if you prefer to use Microsoft Edge, Mozilla Firefox or Google Chrome, Surveillance Center's easy-to-use browser based interface and quick start wizard will allow you to create a security surveillance system in a snap.

Secure connections

ASUSTOR NAS supports VPN connections giving you secure access and flexible deployment options. Your NAS is able to act as a VPN client which can then connect to VPN servers via PPTP, OpenVPN or WireGuard protocols, allowing you to gain access to different virtual private networks. ASUSTOR NAS also supports the creation of multiple VPN connection profiles allowing you to easily switch connections between different VPN networks.

Secure connections

Enhanced Recycle Bin mechanism

The Network Recycle Bin mechanism has been updated in ADM and is now based on individual shared folders rather than storage volumes. According to their needs, users can decide whether or not to enable a Network Recycle Bin for each individual shared folder, enjoying added configuration flexibility.
Files that are moved to the Recycle Bin maintain their original directory structure, allowing added convenience should users need to search for already deleted files. The simple one-click restore function will restore selected files to their original directory path while conveniently maintaining all properties and permissions settings.

Hardware Specifications

AS6510T
CPU Intel ATOM C3538 2.1GHz Quad-Core Processor
Memory 8GB SO-DIMM DDR4 (Expandable. Max 64GB)
HDD 10x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots 2x M.2 PCIe (NVMe) or SATA SSD for SSD Caching
*Support M.2 2280, 2260 and 2242.
M.2 Drive Slots 2
Maximum Drive Bays with Expansion Unit 18
Expansion 2x USB 3.2 Gen 1
Network 2x 10 Gigabit Ethernet(10G/1G);
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output N/A
Size 215.5(H) x 293(W) x 230(D) mm
Power Consumption 76.8W (Operation);
41.1W (Disk Hibernation);

Software & Features

Operating System

  • ADM 4.1 Onwards
  • Supports Online Firmware Updates

Supported OS

  • Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
  • mac OS 10.6 Onwards
  • UNIX, Linux, and BSD

Supported Languages

  • Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar, ภาษาไทย

Supported Browsers

  • FireFox
  • Chrome
  • Safari
  • Microsoft Edge

Network Protocols

  • CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

File System

  • Internal Disk: EXT4 ,Btrfs
  • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN

  • Maximum Targets: 256
  • Maximum LUNs: 256
  • Maximum Snapshot Versions of a Single LUN: 256
  • Target Masking
  • LUN Mapping
  • ISO File Mounting
  • Supports MPIO
  • Persistent (SCSI-3) Reservations

Customized Sign In Page

  • 2 Different Template Choices
  • Customizable Title, Imageand Background
  • Image Import Function

Disk Management

  • Scheduled Bad Block Scans
  • Scheduled S.M.A.R.T Scans

Energy Control

  • Configurable Disk Hibernation and Sleep Mode Wait Time
  • Configurable Time Period for Sleep Mode Activation
  • Automatic Sleep

Network

  • TCP/IP (IPv4 & IPv6)
  • Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
  • SMB Multichannel
  • Jumbo Frame (MTU)
  • VLAN
  • EZ Connect
  • Wireless Network³
  • DDNS and EZ-RouterCompatibility

Backup Solutions

  • Rsync (Remote Sync) Backup
  • Cloud Backup
  • FTP Backup
  • External Backup
  • One Touch Backup
  • EZ Sync
  • MyArchive

System Administration

  • Log Type: System Log, Connection Log, File Access Log
  • Real-time Online User Monitor
  • Real-time System Monitor
  • User Quota
  • Virtual Drive (ISO Mounting, Maximum 16)
  • UPS SupportCompatibility

Network Recycle Bin

  • Share folder-based
  • Maintains original directory structure and file permission
  • On-click restore
  • Supports scheduled emptying
  • Filtering rules
    1. File size
    2. File extension
  • Deletion Settings
    1. File size
    2. File date

Access Control

  • Maximum Number of Users: 4096
  • Maximum Number of Groups: 512
  • Maximum Number of Shared Folders: 512
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • Supports Windows Active Directory / LDAP

ACL

  • Provides both Windows ACL and Linux ACL permission configuration methods
  • Can enable Windows ACL for specific shared folders
  • Comprehensive support for Windows’ 13 types of advanced permission settings
  • Can view Windows ACL permission settings from within ADM
  • Supports local users and groups
  • Exclusive permission reset function allows users to quickly restore default permissions

Security

  • AES 256-Bit Encryption
  • Firewall: Prevent Unauthorized Access
  • Alert Notifications: E-mail, SMS
  • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  • Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
  • RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

Network Defender

  • Auto black list
  • Trusted list
  • Black/White list
    • Supports IP/IP range/geolocation

External Devices Compatibility

  • Supports USB/eSATA3 External Storage Devices
  • USB Wi-Fi Dongle Support
  • Bluetooth Dongle/Speaker Support
  • USB Printer Support
  • USB DAC/IR Receiver/Keyboard/Mouse Support
  • CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

Featured Apps

Antivirus (ClamAV)

  • Scheduled Scans
  • Automatic Virus Definition Updates
  • Quarantine Infected Files

Virtual Box

  • Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, macOS
  • Virtual Machine Import Format: OVF
  • Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
  • Virtual Machine Snapshots
  • Physical NAS Network Port can be Designated for use by Specific Virtual Machine

Linux Center

  • Integrating NAS operating system with Linux
  • Easy installation with just one click

Download Center

  • Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
  • Torrent Search
  • Choose Files Before a BT Task Starts
  • Customizable Download Schedule
  • Bandwidth Control
  • RSS Subscription and Automatic Downloading (Broadcatching)
  • ASUSTOR Download Assistant for Windows & Mac
  • AiDownload for Android with Push Notification
  • Smart Download Function

Cloud Backup Center

  • Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage
  • Immediate or scheduled backup
  • Perform multiple backup tasks and back up multiple accounts
  • DataSync Center

    • Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
    • Supports file filter and bandwidth limitation
    • Supported backup methods:
      • Sync
      • Directly upload files to Cloud from NAS
      • Directly download files from Cloud to NAS

    File Explorer

    • Web-based File Management
    • ISO File Mounting
    • Share Links
    • Task Monitor
    • Browse Files on Local PC
    • Thumbnail Previews
    • Data Access via External Optical Drive
    • Supports video playback¹⁰

    FTP Explorer

    • Directory Structure View with Drag & Drop Transfers
    • Task Monitor
    • Stopping of Transmission Task & Resumption of Connection
    • Encrypted Connections: Explicit over TLS, Implicit over TLS
    • FTP Site Manager
    • Bandwidth Control
    • Maximum Simultaneous Transfer Control

    HiDrive

    • Support OneDrive and OneDrive Business
    • Each ADM Account is Able to Individually Log in to One HiDrive Account
    • Supported Backup Methods:
      • Directly Upload Files to HiDrive from NAS
      • Directly Download Files from HiDrive to NAS
    • Supported Protocols:
      • Rsync
      • FTP
      • FTPS
      • SFTP
      • Rsync + SSH

    LooksGood

    • Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
    • Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
    • Attractive poster wall and thumbnail display
    • Automatic production of video poster thumbnails
    • Centralized management and ability to configure order of favorites and playlist history
    • System administrator is able to configure video library and editing permissions according to user preferences
    • Can configure access permissions to share with friends and family
    • Multimedia conversion feature
    • Self-defined smart folder for video conversions
    • Easy Streaming with Chromecast and DLNA
    • Supports playback of videos in Apple TV via AiVideos tvOS version

    OwnTone

    • For iTunes on Mac & Windows
    • Supports AirPlay
    • Supports iOS Remote Pairing
    • Supported Audio Formats: AIF⁵, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV⁵
    • Supported Video Formats: M4V, MOV, MP4
    • Supported Playlist Formats: M3U, WPL

    Mail Server

    • Each ADM Account can Become an Independent Email Account
    • Email Activity Monitor (Over 1 Week, 1/3/6 Months)
    • Provides SMTP, IMAP and POP3 Mail Protocols
    • Supports SMTP Relay and Verification
    • SMTP-SSL Secure Connections
    • Spam Filter and Black List Settings
    • Antivirus Scanning for Emails
    • Email Alias Creation and Mapping
    • Monitoring of Mail Queue
    • Mail Service Activity Log
    • Exclusive Email Backup Mechanism
    • Auto-Forwarding and Auto-Response Protocols

    Photo Gallery 3

    • Quickly find and view photos from a specific date in Photo Gallery 3’s timeline.
    • Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates.
    • Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
    • Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
    • Easily find photos by keyword search.

    VPN Server

    • Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
    • View Current Connections & Ability to Disconnect Suspicious Connections
    • Comprehensive Connection Log

    SNMP Server

    • Supports SNMP v1, v2c, v3 and trap
    • ASUSTOR NAS MIB provided

    Syslog server

    • Supports standard syslog protocol
    • Graphical log monitoring by time and device
    • Supports TCP and UDP
    • Auto log archiving
    • User-defined email notification

    Surveillance Center

    • Up to 64 channels in 720p on single live view display
    • On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
    • Up to 4 channels of synchronous and non-synchronous playback with audio
    • Intelligent video analytics including motion detection and foreign object detection
    • Supported Browsers: Microsoft Edge, Firefox, Chrome
    • Event notification supports SMS, E-mail, and mobile push notification
    • Automated event action rules
    • Role-based access control
    • RTSP streaming server (video and audio)
    • AiSecure mobile app for iOS and Android with Push notification
    • ONVIF Profile S, T supported
    • CMS Lite supports connect up to 256 IP Cameras from 32 NAS
    • Two different camera license packages are offered: single channel and 4 channels.
    • Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
    Series Maximum IP cam
    AS71 100
    AS68 72
    AS7 64
    AS65 64
    FS67 44
    AS67 44
    AS66 40
    AS63/64 36
    AS61/62 36
    AS54 44
    AS52/53 36
    AS50/51 30
    AS33 25
    AS31/32 25
    AS40 16
    AS-6 16
    AS11 12
    AS-2TE/AS-3 8
    AS-2T 8
    AS10 8
    • Minimum PC Client Requirements
      • CPU: Intel i5/i7 or above
      • RAM: DDR3 4G or above
      • Operating system Windows 7 and onward
      • Windows browsers: Microsoft Edge, Chrome, Firefox
      • Display resolution: 1280x800 pixels or higher for best user experience
      • Network interface: Gigabit x1
      • Independent graphics card is highly recommend

    SoundsGood

    • Import Personal/Public Music Collection
    • Personal/Public Music Collection Permission Control
    • Playlist Editor
    • ID3 Tag Editor
    • Local Speaker Support: USB
    • Supported Audio Formats for Browser: MP3, WAV, Ogg
    • Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
    • Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
    • ASUS DAC Support

    Takeasy

    • Download from YouTube, Vimeo, Twitch and More
    • Selectable Video Type and Quality
    • Automatic Downloads with Twitch Subscriptions
    • Preview Downloads in Progress
    • Online Playback

    UPnP Media Server

    • Supports PS3 and other Digital Media Player Capable Devices
    • Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
    • Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

    VPN Client

    • Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec
    • Transmission Package Monitor
    • PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
    • PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
    • OpenVPN Port Control
    • OpenVPN Link Compression

    Note:

    1. Metadata (e.g. title) may not be able to displayed in iTunes.
    2. You must first enable real time transcoding for these files in order to play them.
